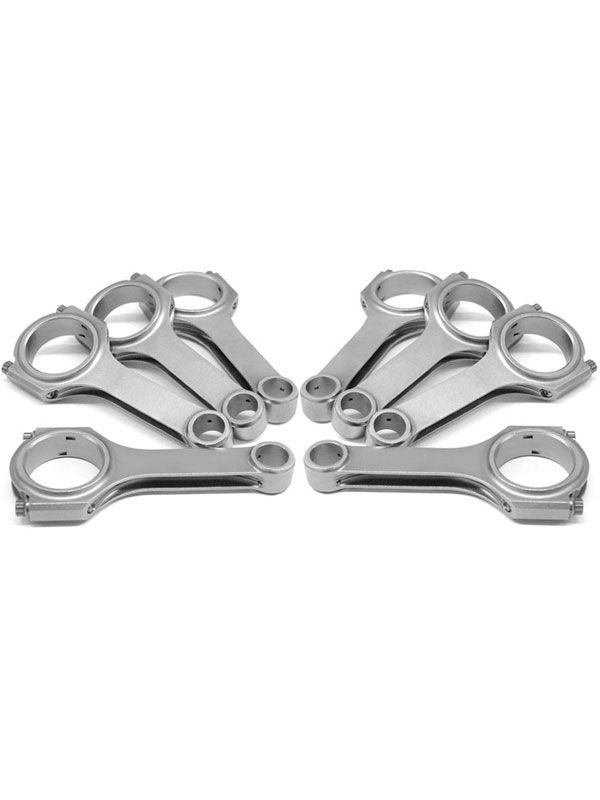

Eagle Connecting Rod H Beam 6.000 in Long Bushed 7/16 in Cap Screw CRS6000B3D

Eagle Connecting Rod H Beam 6.000 in Long Bushed 7/16 in Cap Screw

The Eagle ESP H-beamconnecting rods are a2-piece, forged,vacuum-degassed,4340-certified steelconstruction that providesoutstanding strength, whilestill weighing much less thanstock rods. Each rod ismulti-stage heat-treated,X-rayed, sonic-tested,magnafluxed, 100 percentmachined and then shot-peenedto stress-relieve the metal.The rods have precision capalignment sleeves topositively locate each rodcap, silicon bronze bushingsfor floating pin models andare available in strokermodels that allow additionalcam-to-rod clearance forlarge stroke combinations.They come standard with190,000 psi rated ARP 8740and 230,000 psi rated ARP2000 rod bolts.

Rod Specification

Bolt Type: 7/16" ARP 8740
Pin Fit:Bushed
MaximumHP: 700
Rod Length: SB Chev6.000"
RodJournal: SB Chev2.100"
PinSize: SB Chev.927"
