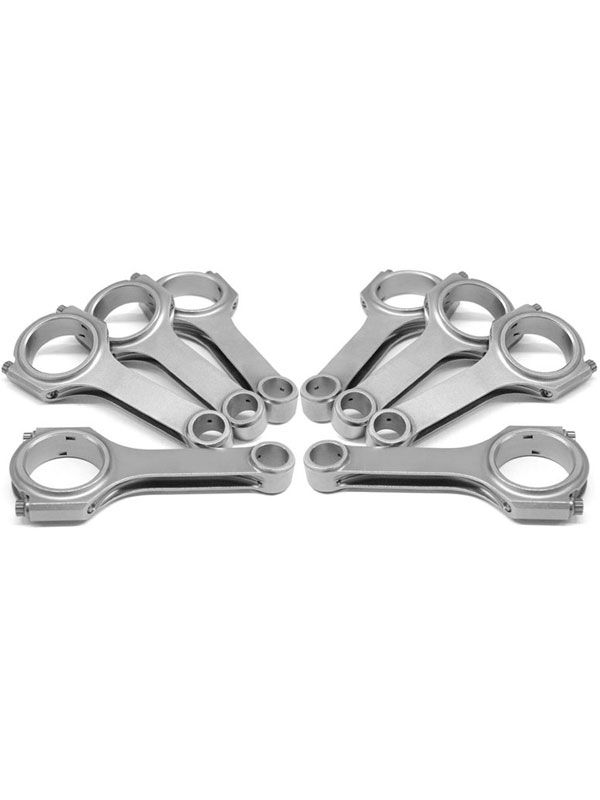

Eagle Crankshafts H-Beam 6" Lj Rod Set 0.927 Pin 4340 L19 Hd Bo CRS6000B3DL19
(Prior to Dispatch)
Eagle Crankshafts H-Beam 6" Lj Rod Set 0.927 Pin 4340 L19 Hd Bo
The Eagle ESP H-beamconnecting rods are a2-piece, forged,vacuum-degassed,4340-certified steelconstruction that providesoutstanding strength, whilestill weighing much less thanstock rods. Each rod ismulti-stage heat-treated,X-rayed, sonic-tested,magnafluxed, 100 percentmachined and then shot-peenedto stress-relieve the metal.The rods have precision capalignment sleeves topositively locate each rodcap, silicon bronze bushingsfor floating pin models andare available in strokermodels that allow additionalcam-to-rod clearance forlarge stroke combinations.They come standard with190,000 psi rated ARP 8740and 230,000 psi rated ARP2000 rod bolts.
Rod Specification
Bolt Type: 7/16" ARP L19
Pin Fit:Bushed
MaximumHP: 1400
Rod Length:SB Chev 6.000"
Rod Journal:SB Chev 2.100"
Pin Size: SBChev .927"
