Comp Cams Camshaft FSL 212/224 D 210/222 N Hydraulic Roller GM LS2/
Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 266

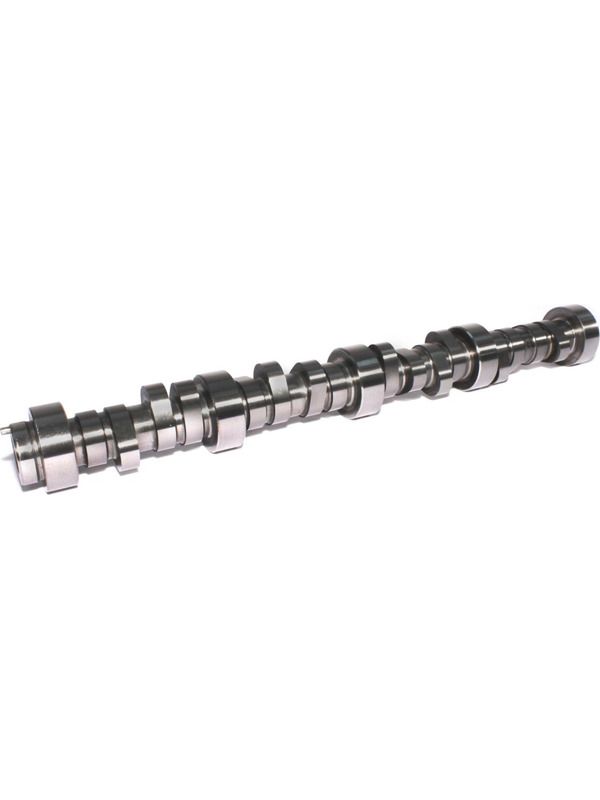

Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 275 646-431-13
MPN: 646-431-13
|
RPI: 2594042
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584238003
Manufacturer Part Number
646-431-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Assembly Lubricant Included
No
Basic Operating RPM Range
1,600-6,300
Cam Type
Hydraulic Roller
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
XFI AFM
Engine Family
GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Grind Number
262AFM15
Lifter Type
Hydraulic Roller
Lifters Included
No
Lobe Separation
115
Valve Springs Required
Yes
Advertised Exhaust Duration Deactivation Cylinders
286
Advertised Exhaust Duration Non-Deactivation Cylinders
274
Advertised Intake Duration Deactivation Cylinders
275
Advertised Intake Duration Non-Deactivation Cylinders
262
Exhaust Valve Lift Deactivation Cylinders
0.5 in
Exhaust Valve Lift Non-Deactivation Cylinders
0.5 in
Intake Valve Lift Deactivation Cylinders
0.5 in
Intake Valve Lift Non-Deactivation Cylinders
0.5 in
AFM Delete Camshaft Core Prefix
146-
Engine RPO Compatibility
LS4, L76, L77, LH6, LY5, LMG, LFA
Exhaust Duration at .050" Deactivation Cylinders
224
Exhaust Duration at .050" Non-Deactivation Cylinders
222
Intake Duration at .050" Deactivation Cylinders
212
Intake Duration at .050" Non-Deactivation Cylinders
210
Notes: Camshaft XFI AFM Hydraulic Roller Advertised Duration 275/286 Lift .500/.500 GM LS2/LS3 GEN IV
Item Specific Information
Brand
GTIN
036584238003
Manufacturer Part Number
646-431-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Assembly Lubricant Included
No
Basic Operating RPM Range
1,600-6,300
Cam Type
Hydraulic Roller
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
XFI AFM
Engine Family
GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Grind Number
262AFM15
Lifter Type
Hydraulic Roller
Lifters Included
No
Lobe Separation
115
Valve Springs Required
Yes
Advertised Exhaust Duration Deactivation Cylinders
286
Advertised Exhaust Duration Non-Deactivation Cylinders
274
Advertised Intake Duration Deactivation Cylinders
275
Advertised Intake Duration Non-Deactivation Cylinders
262
Exhaust Valve Lift Deactivation Cylinders
0.5 in
Exhaust Valve Lift Non-Deactivation Cylinders
0.5 in
Intake Valve Lift Deactivation Cylinders
0.5 in
Intake Valve Lift Non-Deactivation Cylinders
0.5 in
AFM Delete Camshaft Core Prefix
146-
Engine RPO Compatibility
LS4, L76, L77, LH6, LY5, LMG, LFA
Exhaust Duration at .050" Deactivation Cylinders
224
Exhaust Duration at .050" Non-Deactivation Cylinders
222
Intake Duration at .050" Deactivation Cylinders
212
Intake Duration at .050" Non-Deactivation Cylinders
210
