Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 275
Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 270

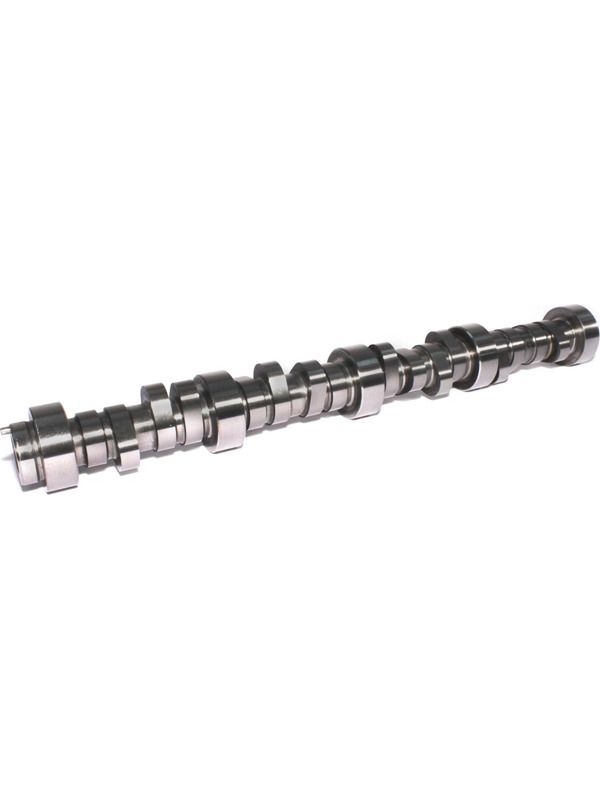

Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 266 646-432-13
MPN: 646-432-13
|
RPI: 2594043
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584238010
Manufacturer Part Number
646-432-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Assembly Lubricant Included
No
Basic Operating RPM Range
1,900-6,500
Cam Type
Hydraulic Roller
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
XFI AFM
Engine Family
GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Grind Number
266AFM16
Lifter Type
Hydraulic Roller
Lifters Included
No
Lobe Separation
116
Valve Springs Required
Yes
Advertised Exhaust Duration Deactivation Cylinders
294
Advertised Exhaust Duration Non-Deactivation Cylinders
282
Advertised Intake Duration Deactivation Cylinders
282
Advertised Intake Duration Non-Deactivation Cylinders
270
Exhaust Valve Lift Deactivation Cylinders
0.5 in
Exhaust Valve Lift Non-Deactivation Cylinders
0.5 in
Intake Valve Lift Deactivation Cylinders
0.5 in
Intake Valve Lift Non-Deactivation Cylinders
0.5 in
AFM Delete Camshaft Core Prefix
146-
Engine RPO Compatibility
LS4, L76, L77, LH6, LY5, LMG, LFA
Exhaust Duration at .050" Deactivation Cylinders
232
Exhaust Duration at .050" Non-Deactivation Cylinders
230
Intake Duration at .050" Deactivation Cylinders
220
Intake Duration at .050" Non-Deactivation Cylinders
218
Notes: Camshaft XFI AFM Hydraulic Roller Advertised Duration 266/278 Lift .500/.500 GM LS2/LS3 GEN IV
Item Specific Information
Brand
GTIN
036584238010
Manufacturer Part Number
646-432-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Assembly Lubricant Included
No
Basic Operating RPM Range
1,900-6,500
Cam Type
Hydraulic Roller
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
XFI AFM
Engine Family
GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Grind Number
266AFM16
Lifter Type
Hydraulic Roller
Lifters Included
No
Lobe Separation
116
Valve Springs Required
Yes
Advertised Exhaust Duration Deactivation Cylinders
294
Advertised Exhaust Duration Non-Deactivation Cylinders
282
Advertised Intake Duration Deactivation Cylinders
282
Advertised Intake Duration Non-Deactivation Cylinders
270
Exhaust Valve Lift Deactivation Cylinders
0.5 in
Exhaust Valve Lift Non-Deactivation Cylinders
0.5 in
Intake Valve Lift Deactivation Cylinders
0.5 in
Intake Valve Lift Non-Deactivation Cylinders
0.5 in
AFM Delete Camshaft Core Prefix
146-
Engine RPO Compatibility
LS4, L76, L77, LH6, LY5, LMG, LFA
Exhaust Duration at .050" Deactivation Cylinders
232
Exhaust Duration at .050" Non-Deactivation Cylinders
230
Intake Duration at .050" Deactivation Cylinders
220
Intake Duration at .050" Non-Deactivation Cylinders
218
