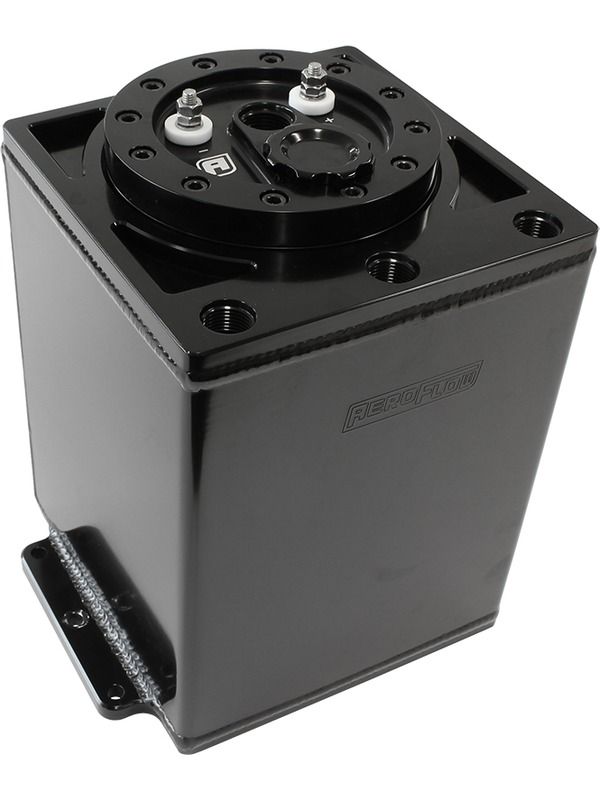

Aeroflow Single,Twin Or Triple Surge Tank, Suits 49-1041 Pumps. AF77-4053BLK

Aeroflow Single,Twin Or Triple Surge Tank, Suits 49-1041 Pumps.

These Aeroflow Performance Surge Tanks are designed to prevent starving the fuel pumpby increasing the fuelling capability of the fuel system.It is usually installed in vehicles that potentially can experience fuel starvation dueto fuel sloshing around in an inadequately baffled fuel tank/cell. While this can occur in any vehicle when the tank is not fully filled, it is more frequent in vehicles subject to violent changes in directions such as autocross, off-road, drag racing and other types of racing that involve high g-force. The primary fuel pump in the vehicle's main fuel tank will no longer directly feed the engine. Instead, the internal fuel pump will now be used to fill and maintain the level offuel in the surge tank itself.Using a surge tank will now require new external fuel pump/s to be installed after the tank to supply fuel to theengine.

These large triple pump EFI surge tanks are designed to work with any 40mm diameter fuel pumps such as AF49-1057 or AF49-1042 (Sold Separately). These smarttanks are designed to have fuel pumps submerged in fuel for a quieter operation and longer life of the fuel pump.

Utilizing a billet40mm pump hanger that can holdup to 3 40mm pumps which can be capable of handling 1000hp.With a built-in fuel manifold chamber for better pressure equalization and no extra couplers. This top hat has a large -10AN male for the feed,3 x -8ORB Ports for return/overflow, a -16ORB withbillet cap for a filler cap and two electrical terminal bulkheads. The tank itself is robotically TIG welded with 2.5mm thick aluminium and features a two M8 mounting bungs welded into the side of the tank for mounting accessories such as a fuel filter bracket.

The tankis available in either Polished or Black anodised finishes. Black anodised is recommended for Ethanol or Methanol fuel systems.
