Aeroflow Dual EFI Pump Surge Tank Black Use With AF49-1014 Pump AF77-3244BLK

Aeroflow Dual EFI Pump Surge Tank Black Use With AF49-1014 Pump

These Aeroflow Performance Surge Tanks are designed to prevent starving the fuel pumpby increasing the fuelling capability of the fuel system.It is usually installed in vehicles that potentially can experience fuel starvation dueto fuel sloshing around in an inadequately baffled fuel tank/cell. While this can occur in any vehicle when the tank is not fully filled, it is more frequent in vehicles subject to violent changes in directions such as autocross, off-road, drag racing and other types of racing that involve high g-force. The primary fuel pump in the vehicle's main fuel tank will no longer directly feed the engine. Instead, the internal fuel pump will now be used to fill and maintain the level offuel in the surge tank itself.Using a surge tank will now require new external fuel pump/s to be installed after the tank to supply fuel to theengine.
These compact EFI surge tanks are designed to work with our AF49-1014 fuel pumps, which have a 60mm body and are similar to the popular Bosch Motorsport 044 (Sold Separately). These smartlittle tanks are designed to have fuel pumps submerged in fuel for a quieter operation and longer life of the fuel pump.

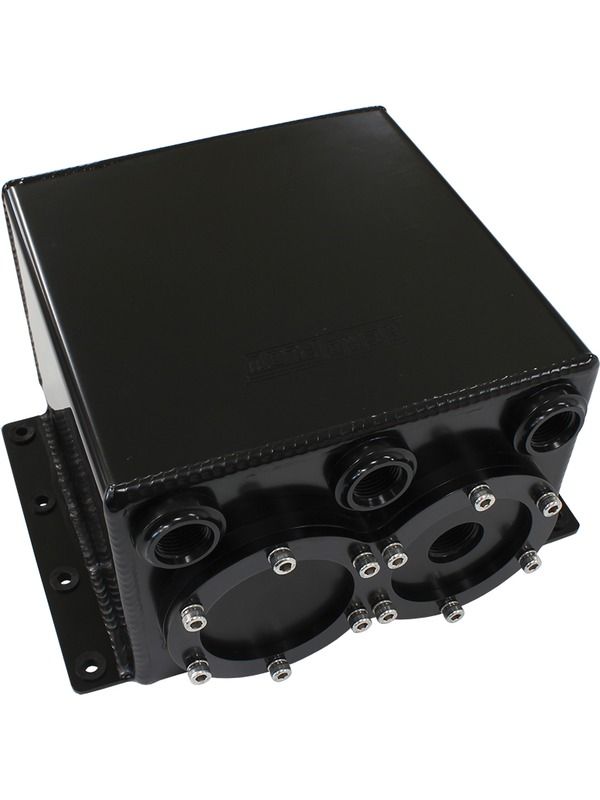

The tank itself isrobotically TIG welded with 2.5mm thick aluminium, featuring three female -8 O-ring ports. When both fuel pumps are installed, you can fit a AF939-08-10 billet Y-piece to merge both fuel pumps to a single female -10 ORB port.
The tank is available in either Polished or Black anodised finishes. Black anodised is recommended for Ethanol or Methanol fuel systems. A block off plate is also included so you can run asingle pump rather than the dual setup.
