Wilwood Brake Caliper Tx6R Radial Mount Aluminum Red Powdercoate 120-13816-RD
(Prior to Dispatch)

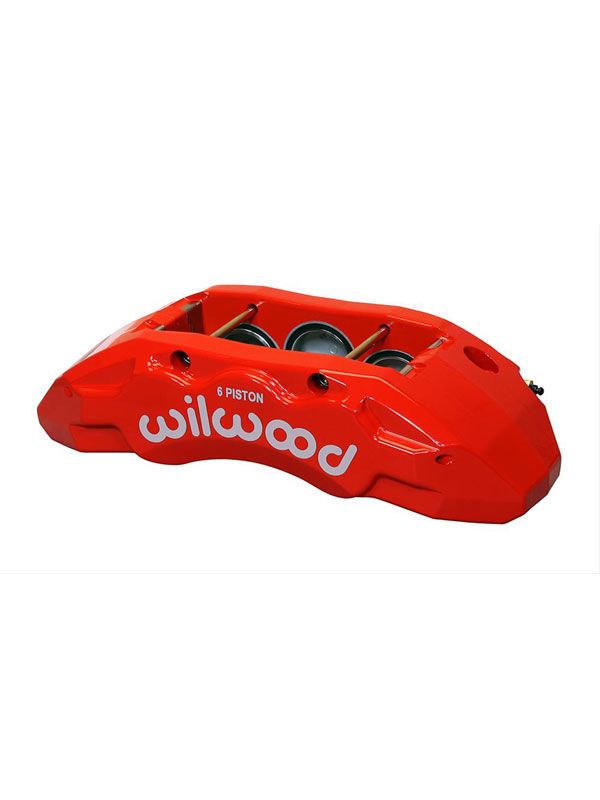

Wilwood Brake Caliper Tx6R Radial Mount Aluminum Red Powdercoate
Wilwood TX6R forged radial-mount brake calipers are purpose-built for severe-duty service on heavy-duty trucks, SUVs, and Class 1, 2, and 3 armored vehicles up to 14,000 lbs. GVWR. They combine a forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50 in. thick. This makes TX6R calipers the ultimate choice for high strength, lightweight, and tactical-level braking capacity for all types of highway and off-road extreme-duty service applications. The calipers have a hard anodized finish on base models, with options for gloss black or red powdercoat, and are fit with dirt wipes for improved long-lasting service.
Additional features include:
* Six-piston caliper design
* A stress flow-formed aluminum body design with stainless steel pistons with high-temp internal bore seals
* Easy bolt-on installation
* Developed for rotors from 14.25 in. to 16.00 in. diameter and rotor widths from 1.38 in. to 1.50 in.
* Easy access top loaded type 10120, .770 in. thick pads with rigid .240 in. thick backing plates
* Stainless steel bridge plates and protected single bleed design with internal fluid ports
* Versatile and easily adapted radial-mount design
* Calipers include Wilwood logo
