Wilwood 12in Big Brake Kit Fits Ford Falcon Fairlane 140-FORDXY-12-D
(Prior to Dispatch)
Wilwood 12in Big Brake Kit Fits Ford Falcon Fairlane

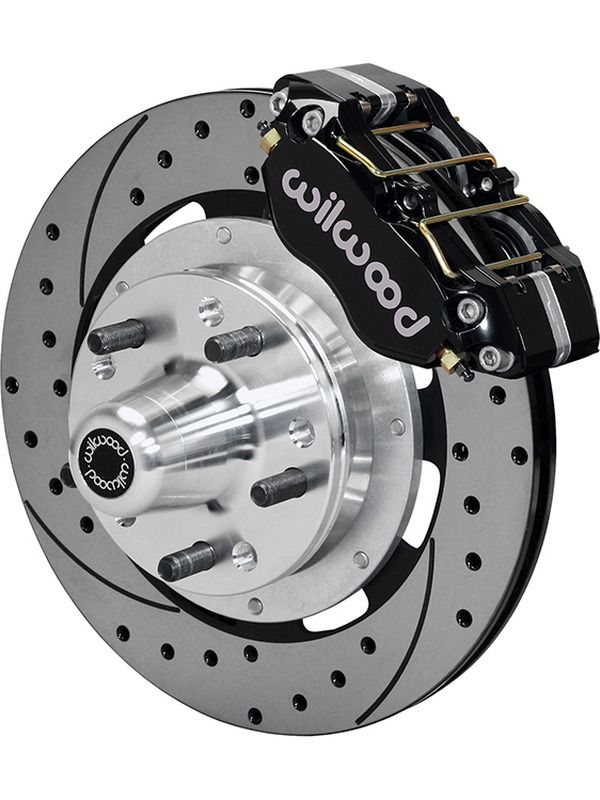

Big Brake 12'' Front Brake Kit Dynapro Dust-Boot , Ford Falcon XW-XY
DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19 diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
| OE Hub Offset: | +.09 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
Fitment:
- Ford Falcon XR-XT-XW-XY
- Ford Fairlane ZA-ZB-ZC-ZD
- Stub Axle Splash shield bolt holes need to be tapped from 5/16 to 3/8 when fitting Wilwood Brakes
- Use PFE-BH2020-SS-KIT Proflow Wilwood Stainless Brake Hose Kit For XR-XT
- Use PFE-BH2000-SS-KIT Proflow Wilwood Stainless Brake Hose Kit For XW-XF
- Hubs suit early stub axles which have id bearing dimensions of 1.250"and.750"
- Note please measure you stub axles as many cars have been retro fitted with later XA type stub axles
