Wilwood 11in Big Brake SS Kit Fits Ford Falcon Fairlane 140-FXY-11-D-SS
(Prior to Dispatch)
Wilwood 11in Big Brake SS Kit Fits Ford Falcon Fairlane

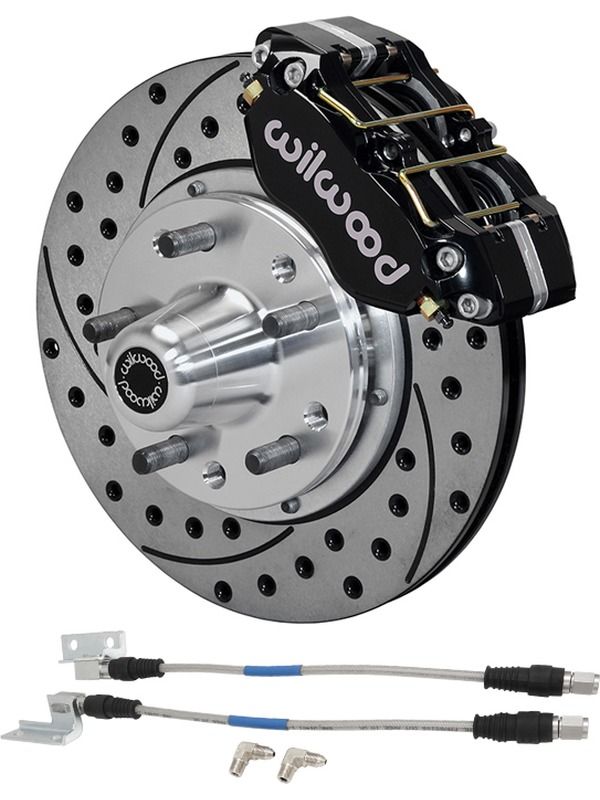

Big Brake 11'' Front Brake Kit Dynapro Dust-Boot , Ford Falcon XW-XY with Stainless Brake Lines
Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
| OE Hub Offset: | +.09 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req'd*: | 14 |
Fitment:
- Ford Falcon XR-XT-XW-XY
- Ford Fairlane ZA-ZB-ZC-ZD
- Stub Axle Splash shield bolt holes need to be tapped from 5/16 to 3/8 when fitting Wilwood Brakes
- Comes with-BH2000-SS-KIT Proflow Wilwood Stainless Brake Hose Kit For XW-XF
- For XR-XT Use PFE-BH2020-SS-KIT Proflow Wilwood Stainless Brake Hose Kit
- Hubs suit early stub axles which have id bearing dimensions of 1.250"and.750"
- Note please measure you stub axles as many cars have been retro fitted with later XA type stub axles
Proflow Stainless Brake Line KIt
These performance brake hose kits contain all the same features as our braided brake lines kits but are tailored to suit your early model Ford fitted with aftermarket Wilwood brake calipers.
Quality Stainless Steel Hardware Used Throughout(apart from mounting block)
