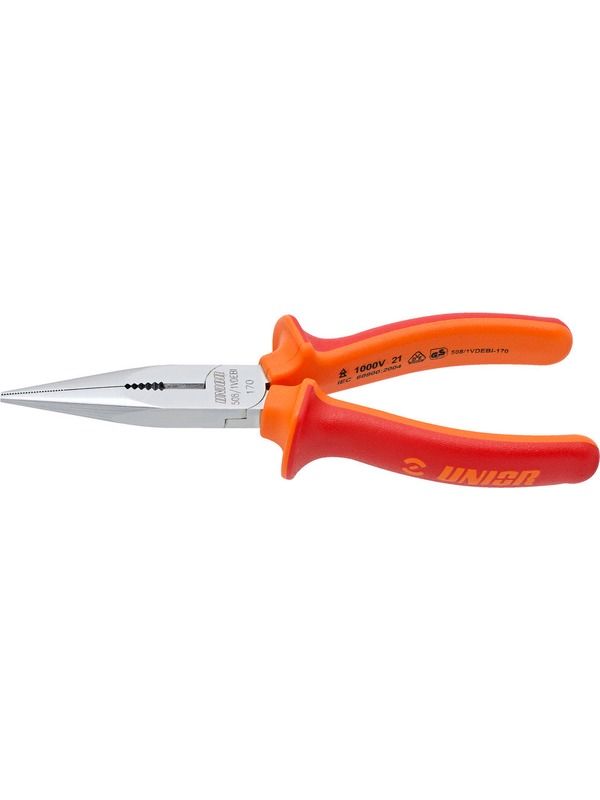

Unior 508/1VDEBI Long Nose Pliers with Side Cutter & Pipe Grip Straight 610436

Unior 508/1VDEBI Long Nose Pliers with Side Cutter & Pipe Grip Straight

Overview

• Unior insulated VDE tools ensure ultimate protection even when used around live circuits with up to a 1000-volt potential. The utility of all tools is thoroughly verified by means of the impact strength, electrical, flame-retardancy, insulation adhesion and stamp tests, with each tool being tested individually.

• Unior's insulated wrenches, pliers, shears, screwdrivers and other tools for working with electrical and other power installations are made of high-quality tool steel with added protection, and designed for simple and safe use.


• VDE insulated and tested according to the VDE regulations, Unior tools for work in electrically live environments meet the requirements of the internationally acknowledged European EN IEC 60900 standard.


Features

• material: premium plus carbon steel

• drop forged, entirely hardened and tempered

• cutting edges induction hardened

• head polished

• surface finish: chrome plated to standard ISO 1456:2009

• heavy duty double - component handles

• made according to standard ISO 5745 and EN IEC 60900

Advantages

• also for clenching and separating of from cables and other sensitive objects

• gripping surface serrated

Specifications
Product CodeL (Length)B (Width)D (Diameter)A (Thickness)CWeight

610436		170	17	2.5	9	61	156
610437		200	17	2.5	9	77	191

cutting capacity (10N=1kg)Product CodeLength

Wire Max. 1600 N/mm2

Max Diameter (mm)

Wire Max. 650 N/mm2

Max Diameter (mm)

610436	170	1,6	3,0
610437	200	1,8	3,0

* Images of products are symbolic. All dimensions are in mm, and weight in grams. All listed dimensions may vary in tolerance.
