Strange Door Car Steering Rack Right Hand Steer S3448-RH
(Prior to Dispatch)

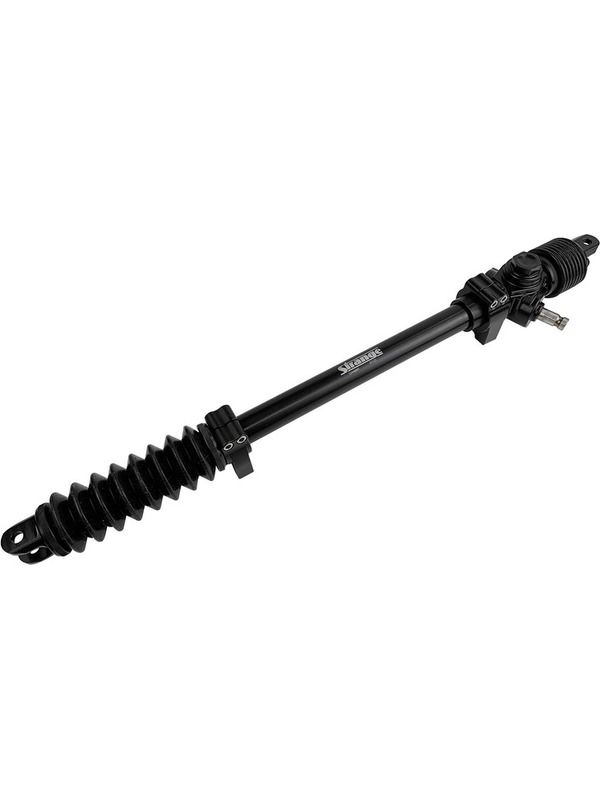

Strange Door Car Steering Rack Right Hand Steer
Built with pride in the USA, Strange lightweight Door Car Drag Racing Steering Rack is manufactured using only heat-treated high strength hardened steel and aircraft grade billet aluminum. Combine the best parts available with uncompromising standards in the manufacturing process and you produce a Drag Race Steering Rack with a silky-smooth turning radius and almost zero backlash.
The hardened 4140 chrome moly pinion rides on a system of ball-bearings that deliver a seamless feel in the driver's hand with the confidence of durability and longevity.The steering box housing is CNC machined from 6061-T6511 billet aluminum to be lightweight and extremely strong.
Everything that goes into Strange Drag Race Steering Racks-from the self-lubricating bronze bushings that allow the unit to move and flex smoothly to the dual lip pinion seal and heavy-duty, nylon reinforced neoprene boots that keep debris and moisture at bay-is top quality. Not only are the manufacturing specs very tight but assembly tolerances are exceptionally close. Stringent testing and active quality control keep Strange Drag Race Steering Racks smooth and durable with almost no backlash.
Part Number: S3448-RH.Right Hand Side
Application Drag Race Door Cars
Description
Steering Rack and Pinion
22 to 1 ratio
24.5in tie rod centers
20Deg horizontal pinion angle
9/16in-26 spline pinion-Same spline as Mustang / Pinto
0 Deg vertical pinion angle as shipped
Pinion angle can be adjusted to 20Deg or 40Deg upward
4.25in total rack travel
11.60in mounting clamp centers
5.75 lbs
Features
Body
6061-T6511 billet aluminum
Black anodized finish
Rack and Pinion Gear
4140 premium alloy steel
Hardened rack and pinion gear
Clevis Ends
6061-T6511 billet aluminum
Accepts 3/8in high misalignment rod ends *
Adjustable clevis angles
Black anodized finish
Bellows
High temperature silicone
Mounting Clamp-Pinion Side
6061-T6511 billet aluminum
7/16in-14 bolt holes on 1.25in centers
Black anodized finish
Mounting Clamp-Opposing Side
6061-T6511 billet aluminum
3/8in-16 bolt holes on 1.380in centers
Black anodized finish
* Rod Ends Not Included
Use HXAM-16T (RH threads) and HXAB-16T (LH threads)
Related Components
Tie rod fabrication kit: S3449
Steering shaft u-joint: S3450
Strange Rack and Pinion Steering Box
With 19 1/2in centers: S3448-195
