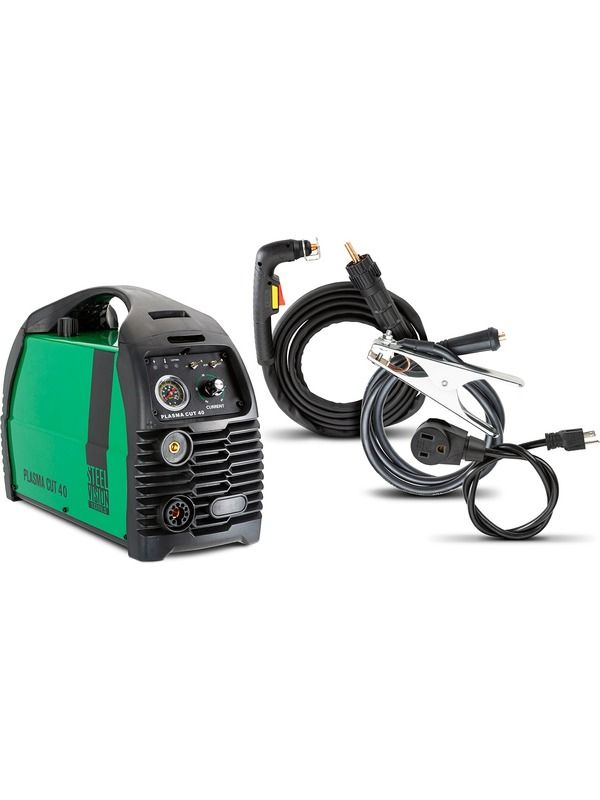

Steel Vision Plasma Cut 40 Plasma Cutter with Built-in Compressor SVTP40C

Steel Vision Plasma Cut 40 Plasma Cutter with Built-in Compressor

The Plasma Cut 40 is the latest design and technology in Inverter Welding Equipment. The Plasma Cut 40 eliminates the need for external air supply with its own built in oil less compressor. This unit is extremely easy to operate and gives trouble free cutting of most conductive metals such as Steel, Stainless Steel, Aluminium, Copper and even Cast Iron.

The Plasma Cut 40 makes On-Site work for its operator easy as the need for an additional compressors is no longer required. This unit is ideal for sheet metal contactors and fabricators, fencing and roofing applications, automotive and farm maintenance and also plumbing applications. This light weight yet powerful unit gives the operator a maximum 12mm cutting capacity with full variable amperage control. The standoff guide on the 45Amp torch and the automatic post flow cooling gives extra longevity for the torch consumables making the operators cost kept to the minimum.

• Input Power V: 240 Volts

• Frequency Hz: 50

• Rated Capacity: 7kVA

• Rated Output: 20-40 Amps

• Duty Cycle: 15% @ 40 Amps

• Arc Start: Pilot L / F

• Air Flow Pressure: 2.5 (36psi)

• Insulation Class: H

• Protective Grade: IP21S

• Air Flow Rate: 6CFM

• Cutting Thickness: Clean Cut 10mm, Severance 12mm

• Dimensions: 650 x 320 x 530mm

• Weight: 21kg

• Compliant: IEC EN 60974-1
