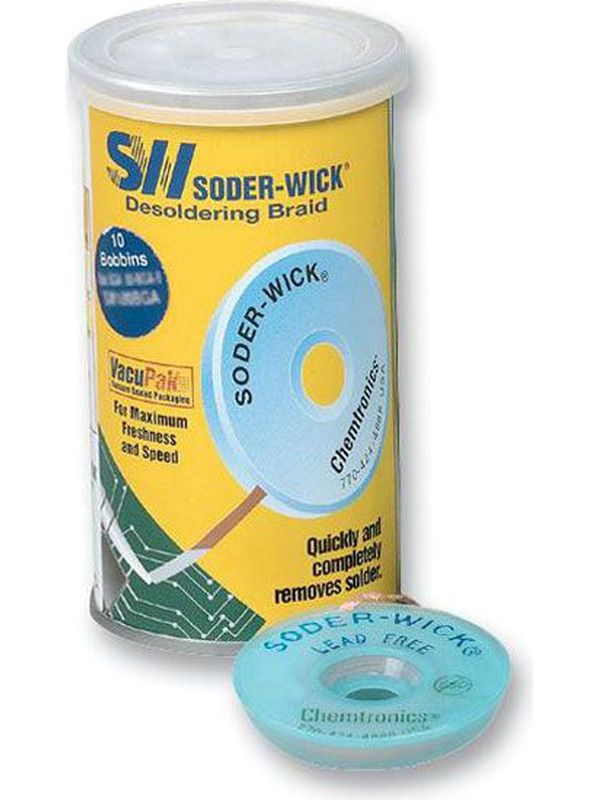

Soder-Wick Rosin Braid 1.5mm-5ft Pk10 () SW18025
MPN: SW18025
|
RPI: 2174092
$137.57
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Soder-Wick Rosin Braid 1.5mm-5ft Pk10 ()
Soder-Wick Rosin Braid 1.5mm-5ft Pk10 (SW18025)
Overview
Soder-Wickoffers the state of the art in desoldering technology. Soder-Wickis designed for todays heat sensitive electronic components using lighter mass, pure copper braid construction that allows for better thermal conductivity, even at low temperatures. Soder-Wickresponds faster than conventional desoldering braids thereby minimizing overheating and preventing PCB damage.
All wick is sealed in nitrogen-purged packaging to avoid corrosion and loss of performance from moisture and oxygen.
Features and Benefits
- Soder-Wick Rosin 5' and 10' spools packaged in ESD-safe static dissipative bobbins
- Minimizes the risk of damage associated with static electricity
- Noncorrosive ultra high purity Type R rosin flux
- Minimizes the risk of heat damage to the board
- Will not leave ionic contamination on the boards
Applications
- Soder-Wick Rosin safely removes solder in all applications requiring Type ROL0 rosin flux
- BGA braid sized and designed specifically for BGA pad and chip rework/repair so entire BGA pads cleaned in three to four passes
Specifications
- MIL-F-14256 F type R flux
- NASA-STD-8739.3 Soldered Electrical Connections
- DOD-STD-883E, Method 2022
- ANSI/IPC J STD-004, Type ROL0
- #2 yellow, 0.060"/1.5mm width
- 5' / 1.5 m length on SD bobbin
- 10 bobbins per VacuPak Can
