Ruko Ultimatecut Twist Drill DIN 338 Type Flowstep HSSE-Co 5 4.5mm 259045E
MPN: 259045E
|
RPI: 3266105
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
4007140386311 |
| Manufacturer Part Number |
259045E |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Coating |
Bronzed / black oxidized surface |
| Core |
normal |
| Cutting Direction |
right hand cutting |
| Diameter |
4.5mm |
| DIN |
338 |
| Drilling Depth |
5 x diameter |
| Groove Profile |
normal |
| Length |
80.0mm |
| Material |
HSSE-Co 5 |
| Point Angle |
130 degrees |
| Shaft |
3-way clamping surface |
| Spiral Angle |
25 degrees - 30 degrees |
| Spiral Length |
47.0mm |
| Tip Grinding |
FLOWSTEP |
| Tolerance |
h8 |
| Type |
FLOWSTEP |

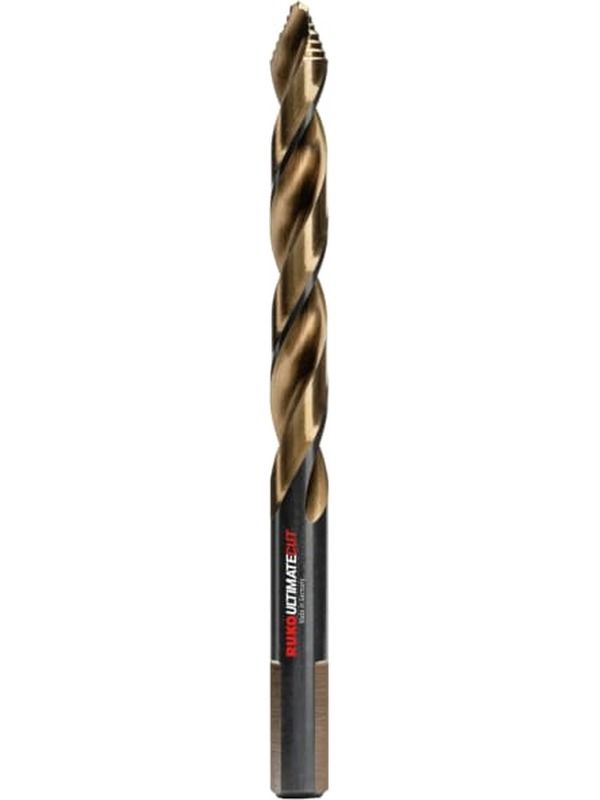

Ruko Ultimatecut Twist Drill DIN 338 Type Flowstep HSSE-Co 5 4.5mm
Overview
Significantly longer tool life - up to 5x more holes possible.
Time savings of up to 50%.
Extremely fast and energy-saving drilling.
Perfect centering, avoiding slipping even on round surfaces such as pipe and tube.
Easy and smooth drilling process, without jamming in the material.
Optimal performance in hand-held (cordless) power tool drill machines.
Diameter 4.5 mm Total length 80.0 mm Flute length 47.0 mm
Application
Steel 900 N/mm
Steel 1100 N/mm
Stainless steel
Aluminium
Brass
Plastics
Wood
Specifications
Diameter: 4.5 mm
Length: 80.0 mm
Spiral Length: 47.0 mm
Drilling Depth: 5 x diameter
Shaft: 3-way clamping surface
Material: HSSE-Co 5
Coating: Bronzed / black oxidized surface
DIN: 338
Type: FLOWSTEP
Tolerance: h8
Cutting Direction: right hand cutting
Tip Grinding: FLOWSTEP
Groove Profile: normal
Core: normal
Spiral Angle: 25 - 30
Point Angle: 130
Net Weight: 0.007 kg
