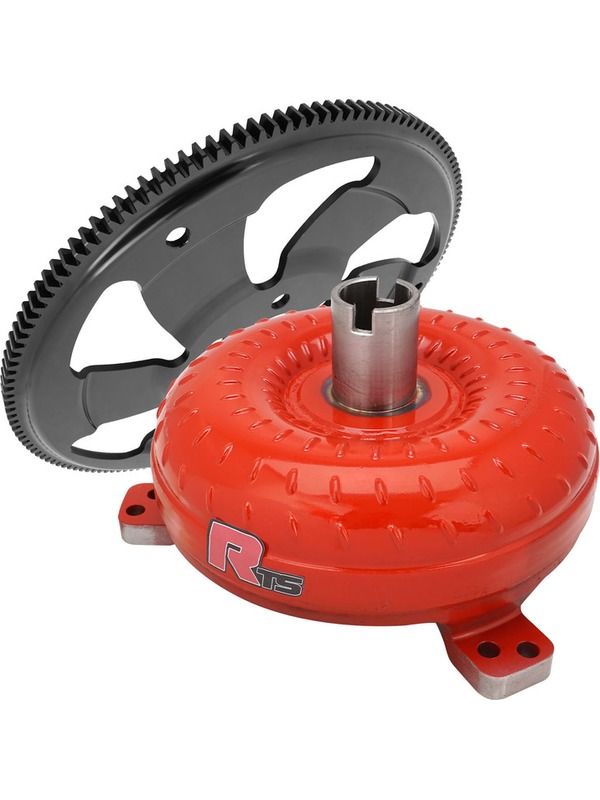

RTS 10in High Stall Torque Converter Flexplate Kit 3200-3600 850HP TC-2052-K

RTS 10in High Stall Torque Converter Flexplate Kit 3200-3600 850HP

Launch With RTS Converter and Flexplate Packages and SaveRTS Serious Stall Converters

RTS high stall torque converters are designed for serious-minded performance enthusiasts and offer additional strength and durability. The higher stall speeds of these converters will launch the car in a higher RPM range where more torque is readily available, resulting in quicker acceleration. They're available for a variety of transmission makes and models. They are also available in a custom build model to suit any performance high horsepower application.

Click here for more details on our custom built torque converters.

Features

• Built using state-of-the-art tools and equipment
• Billet Cover
• Includes NEW components
• Welded internal hub
• Welded fins on turbine and impeller
• Welded pilot
• Chromoly Flanged hub, acts as a internal Anti Balloon plate
• All critical surfaces are resurfaced by skilled craftsman
• Pressure tested to ensure a full and complete weld
• Electronically balanced for precision accuracy
• Made in the USA!

Included

Sonnax 10" performance converter kit GM-RK-1

• Fully machined cover with bushing installed
• Unit-specific design for hassle-free installation
• Oil flow grooves and holes increase fluid flow to keep converters running cooler
• Turbine hub features a larger flanged diameter to increase the strength rigidity of the turbine

Torque Converter Specs

Stall: 3200-3600
Series: Bandit Billet Plus rated at 850hp
Size: 10"
Turbine: 30 spline
Bolt Pattern: TH350, TH400 and PowerGlide with Turbo Spline
Bolt Circle: Dual 10.750'' / 11.500''
Pilot Size: 1.703
Mount: Billet

RTS' full billet steel flexplates are for the serious racers. They are machined out of cold-drawn AISI 1045 carbon steel and come with a stealth black oxidised plating for added durability. Their strength to weight ratio is incredible compared to their 2-piece counterparts which enables them to handle extreme engine builds in excess of 1000 HP. They offer heat-treated, precision machined gear teeth for added strength and feature low runout values to produce an incredibly durable flexplate. They all come with a SFI 29.2 explosion-proof rating.

• Concentric machined to .005".
• One piece design - 100% machined.
• Proprietary heat treating process.
• Chamfered gear tooth provides better engagement.

Application information:

• Fits Chevrolet standard crank.
• 169 tooth ring gear.
• 12 pitch gear form.
• Neutral balance.
• Weighs 9.6 pounds.
• Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle.
