Painless Wiring Painless Drag Racing Harness & Panel Kit 21 Circuit 50003

Painless Wiring Painless Drag Racing Harness & Panel Kit 21 Circuit

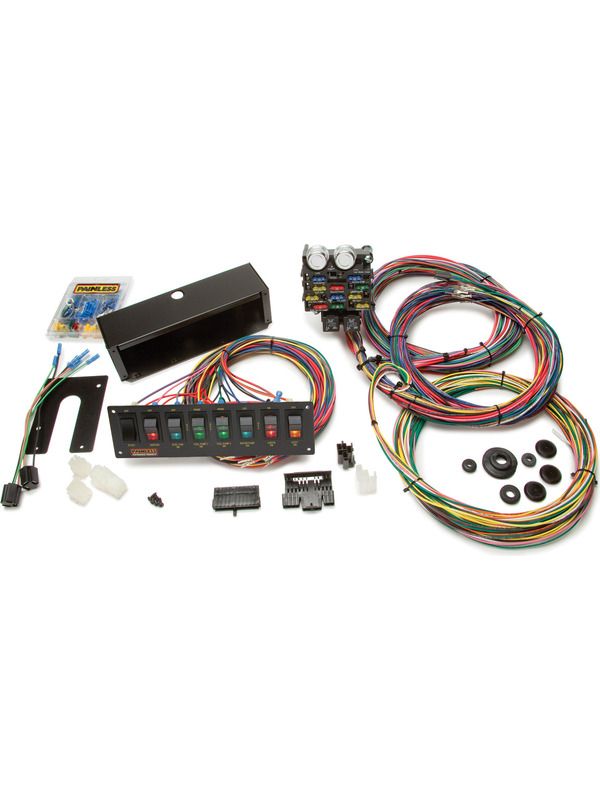

If you are looking for aswitch panel and harness tokeep your racecar streetable,this 21 circuit harness andswitch panel combo is for you.As with all of our chassisharnesses this kit has all thewires labeled and is preterminated at the fuse blockfor easy installation. Thisharness includes an optionalconnector if you want to use aGM column mounted ignitionswitch. The included switchpanel is a roll bar mount 8switch rocker panel. Thispanel is prewired and is adirect plug and play into thisharness. Also Included is apainless mounting plate,grommets, terminal assortmentkit, and the necessaryconnectors for your turnsignal switch, headlights, andalternator. Each wire iscustom printed with thecircuit identification as wellas using GM color codes foreasyinstallation.

The switch panel is prelabedfor the following:

• Start
• Ignition
• Electric Fan
• Fuel Pump#1
• Fuel Pump #2 /Accessory
• WaterPump
• Lights
• Accessory

Number of Circuits:21 Circuits - 12 Fuses w/ HornRelay
HarnessLength: Universal
Fuse Type:Blade & Maxi Fuse
FirewallPassthrough:Grommet
CircuitDesignations: Printedon Wires

Thisharness includes thesecircuits:

• Accessory #1
• Accessory#2
• BrakeLights
• Charging
• DomeLight
• Electric FuelPump #1
• Electric FuelPump #2
• Electric WaterPump
• EmergencyFlashers
• Fan RelayActivation Power
• FusedPowerSource
• Headlights
• Horn
• IgnitionCoil
• ParkLights
• Radio andGauges
• Starting
• TailLights
• Third BrakeLight
• TurnSignals
• Wipers

*Including wiresfor:

• Fuel Gauge
• OilGauge
• Tachometer
• TemperatureGauge
