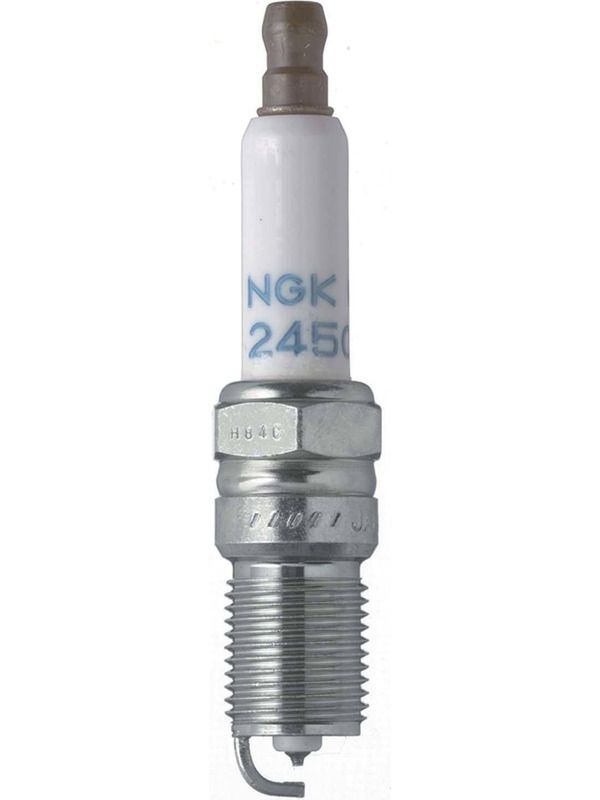

NGK Spark Plug Laser Platinum PZTR5A-15

NGK Spark Plug Laser Platinum Fits Holden, Chevrolet, Holden Special Vehicles

NGK's Laser Platinum Series Plugs Provide High Ignitability and Longer Service Life. Laser Welded Dual Platinum Surfaces Ensure Slow Wear Rate Providing Stable Idle, Superior Anti Fouling, Improved Fuel Efficiency and Lower Emissions. Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties. Corrugated Ribs Prevent Flashover. Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer. Copper Core Aids in Heat Removal. Triple Seals Prevent Leakage. Plug Specifications: Thread Size: 14mm. Hex Size: 16mm. Reach: 19mm. Seat Type: Gasket. Gap: 0.8mm. Heat Range: 6. Terminal Type: Solid. Resistor: Yes. Overall Height: ISO. Thread Pitch: 1.25mm.

Specifications:

• Shell
• Thread Diameter14mm
• Thread Pitch1.25mm
• Seat TypeTapered
• Reach18mm (.709")
• Hex Size5/8" (16mm)
• Terminal TypeSolid
• Overall HeightISO
• Gap.059" (1.5mm)

• Center Electrode
• MaterialPlatinum
• TypeFine Wire
• Size1.0mm
• ProjectionExtended Projection

• Ground Electrode
• MaterialPlatinum
• TypeStandard
• Quantity1

• Specifications
• ResistorYes
• Resistor Value5k Ohm
• Heat Range5
• Torque SpecsCast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb.

Suitable for the various Australian vehicle models listed below. This is a guide only.
Add your vehicle details to My Garage to ensure it fits your vehicle. This will activate our 100% Fitment Guaranteed.

• Chevrolet Blazer S10 4.3 SUV AWD 1994-2005
• Holden Special Vehicles Avalanche 5.7 VY i V8 AWD 2003-2006
• Holden Special Vehicles Clubsport 5.7 VT i V8 1999-2000
• Holden Special Vehicles Clubsport 5.7 VX i V8 2000-2002
• Holden Special Vehicles Clubsport 5.7 VY i V8 2002-2004
• Holden Special Vehicles GTO 5.7 V2 i V8 2001-2003
• Holden Special Vehicles GTO 5.7 VX,VZ i V8 2003-2004
• Holden Special Vehicles GTS 5.7 V2 i V8 2001-2004
• Holden Special Vehicles GTS 5.7 VT i V8 1997-2000
• Holden Special Vehicles GTS 5.7 VX i V8 2000-2001
• Holden Special Vehicles GTS 5.7 VY i V8 2002-2004
• Holden Special Vehicles Grange 5.7 WH i V8 1999-2003
• Holden Special Vehicles Maloo 5.7 VU i V8 2001-2002
• Holden Special Vehicles Maloo 5.7 VY i V8 2002-2004
• Holden Special Vehicles SV300 5.7 VX i V8 2001-2001
• Holden Special Vehicles Senator 5.7 VT i V8 1997-2000
• Holden Special Vehicles Senator 5.7 VX i V8 2000-2002
• Holden Special Vehicles Senator 5.7 VY i V8 2002-2004
• Holden Calais 5.7 VT i V8 1999-2000
• Holden Calais 5.7 VX i V8 2000-2002
• Holden Caprice 5.7 WH i V8 1999-2003
• Holden Commodore 5.7 VT i V8 1999-2000
• Holden Commodore 5.7 VU i V8 2000-2002
• Holden Commodore 5.7 VX i V8 2000-2002
• Holden Commodore 5.7 VY i V8 2002-2004
• Holden Monaro 5.7 V2 i V8 2001-2004
• Holden Monaro 5.7 VZ i V8 2004-2006
• Holden One Tonner 5.7 VY i V8 2003-2004
• Holden Statesman 5.7 WH i V8 1999-2003
