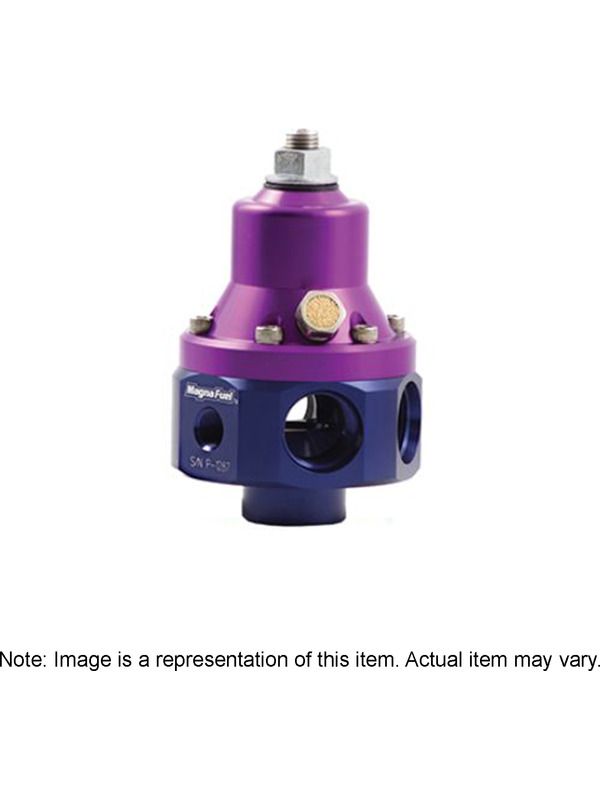

Magnafuel Fuel Pressure Regulator Purple Anodized 35-85 psi Universal MP-9940
(Prior to Dispatch)
Notes: Fuel Pressure Regulator Purple Anodized 35-85 psi Universal
Pressure Range (psi): 35-85 Regulator Style: Return Regulator Location: Inline Boost/Vacuum Reference Port: Yes Boost/Vacuum Rise Ratio: 1:1 Gauge Port: Yes Mounting Bracket Included: Yes Fittings Included: No Rebuildable: Yes Inlet Quantity: Four Inlet Attachment: Female threads Inlet Size: -8 AN O-ring Return Attachment: Female threads Return Fitting Size: -8 AN O-ring Regulator Material: Aluminum Regulator Finish: Purple anodized Quantity: Sold individually. Notes: Filtered vent fitting included. MagnaFuel's EFI fuel pressure control units feature a unique guided-metering valve assembly to provide a more accurate metering of fuel flow and help reduce the pressure drop that can occur at high or sudden changes in fuel demand. The pressure control units are designed to work with the EFI 600 pump and are available in two sizes--large for applications of up to 2,000+ hp and standard for applications of up to 700 hp. Each of these units has a 1/8 NPT pressure port for a gauge, a filtered vent fitting or optional boost reference fitting, and is compatible with racing gasoline and alcohol. The units feature a CNC-machined, aircraft-quality aluminum body and are hand-assembled and flow-tested for maximum performance.
