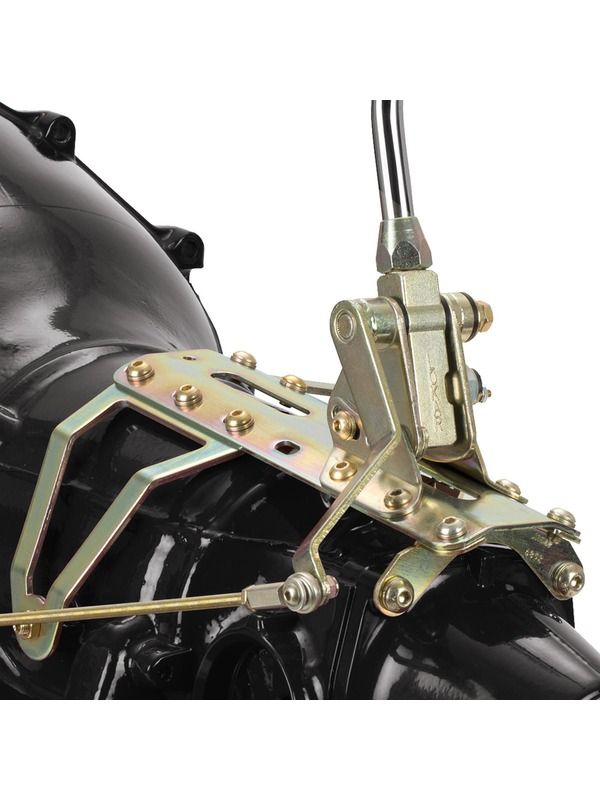

Lokar Case Mount 16in Shifter with Brushed Hi-Tech Knob Fits Ford C4 CMC4CL

Lokar Case Mount 16in Shifter with Brushed Hi-Tech Knob Fits Ford C4

BOOSTED 7682 V-BandTurbocharger Specifications

Recommended horsepower rating: 750-1500HP
Recommended engine displacement: 2.0L to 7.0L

- Dualceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Portedshroud compressor cover
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feedfitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-builtrestrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer: 76mm
Exducer: 109mm
Extended Tip: 116mm
A/R: 0.85
Compressor Inlet: 5" Slip fit
Compressor Outlet:V-Band (AF8080-1009)

Turbine Specifications
Inducer: 89mm
Exducer: 82mm
A/R: 1.01
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1018)

Wastegate
External wastegate
