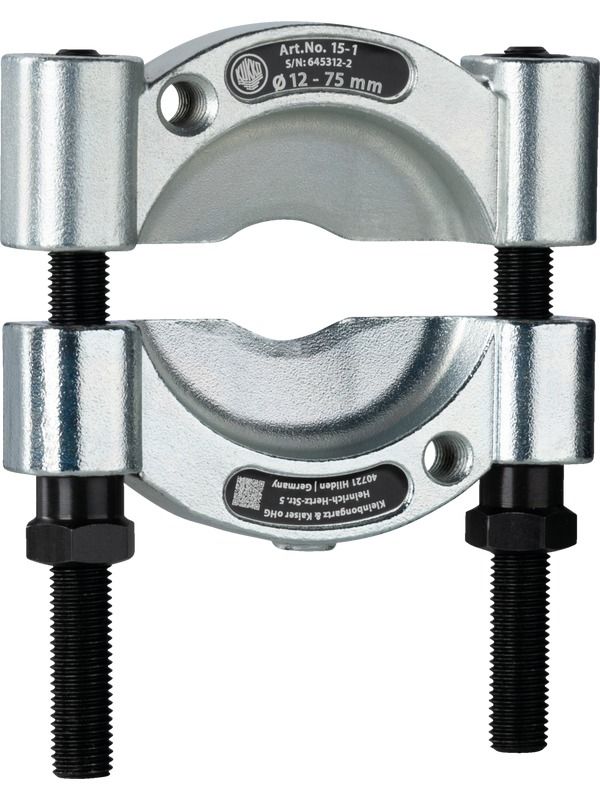

Kukko Separating Device 15-1
(Prior to Dispatch)
Kukko Separating Device
OverviewThe Series 15 separators are used together with the Series 18 pullers for removing ball bearings, roller bearings, inner rings and other flat parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating and extracting process is able to gently separate these parts before they can be extracted from the outside.
ApplicationTogether with the extractors of series 18 for extracting ball bearings, roller bearings, inner rings and other parts lying flat
The sharp cutting edges enable stripping where other stripping methods cannot be used
The screw connection between the separating and extracting device ensures maximum stability during extraction
If the separating jaws are screwed into the extractor the other way round, the contact surface is enlarged and extracted more gently
Total width: 116mm
Total depth: 24mm
Total height: 142mm
Net weight: 1.15kg
Width across flats: 19mm
Cut-off diameter (min): 8mm
Separating diameter (max): 75mm
Cutting edge thickness at the tip: 0.5mm
Rear cutting edge thickness: 6.4mm
Total cutting edge height: 43mm
Usable snow depth: 25mm
Mounting thread for tension bolt (nominal dimension): M10
Separation diameter (min-max): 8mm-75mm
