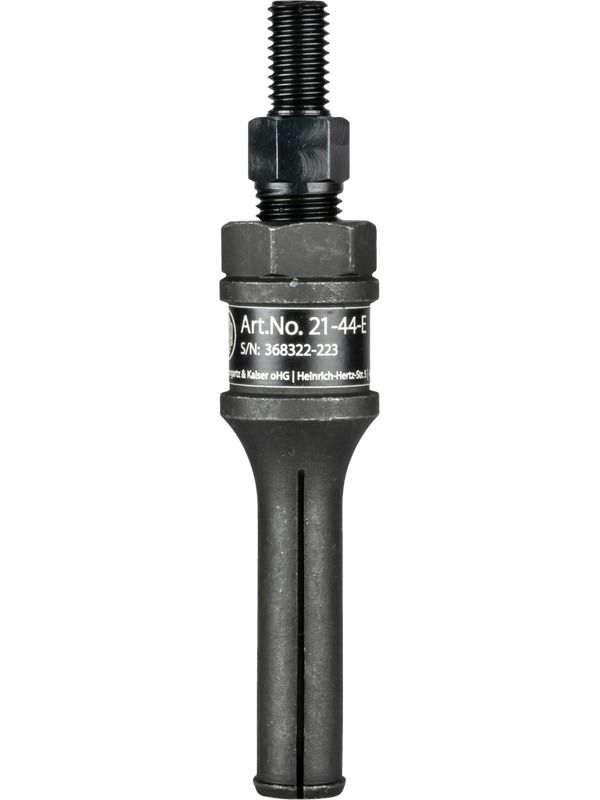

Kukko Internal Segment Extractor 15-20mm Spread 45mm Insertion Depth 21-44-E

Kukko Internal Segment Extractor 15-20mm Spread 45mm Insertion Depth

The segmented internal extractors in the 21-E series are used for extracting flat bearings, bearing outer rings, bushes and seals in trade, workshops and industry. The segmented design with extra fine gripping edges enables the safe extraction of flat parts. The 21 series impresses with its compatibility and variety of applications. Depending on the application, there are numerous variants of the segmented internal extractors. They are used either together with counter stays or with slide hammers.

• For extracting flat bearings, bearing outer rings and bushes

• Thanks to its segmentation and fine spindle, the segment extractor is ideal for precise and gentle work

• Thanks to the mechanical spindle, even bearings that are tightly seated on the rear wall are pulled out safely and quickly

• Shaping ensures a secure grip when mounting and swivelling out bearings or inner rings that form a blind hole

• The thread adapters for internal extractors that may be required are included in the scope of delivery of the counter stays and slide hammers

• Total height: 125mm

• Net weight: 0.2kg

• Width across flats: 14mm

• Width across flats: 22mm

• Span inside pull-out (min): 15mm

• Span inside pull-out (max): 20mm

• Material: Tool steel

• Diameter of the extractor: 25mm

• Mounting thread (nominal dimension): M10

• Insertion depth of internal extractor: 45mm
