JBC 2 Tools DDU Precision Station 230V Cartridges Not Included DDPE-2QC

JBC 2 Tools DDU Precision Station 230V Cartridges Not Included

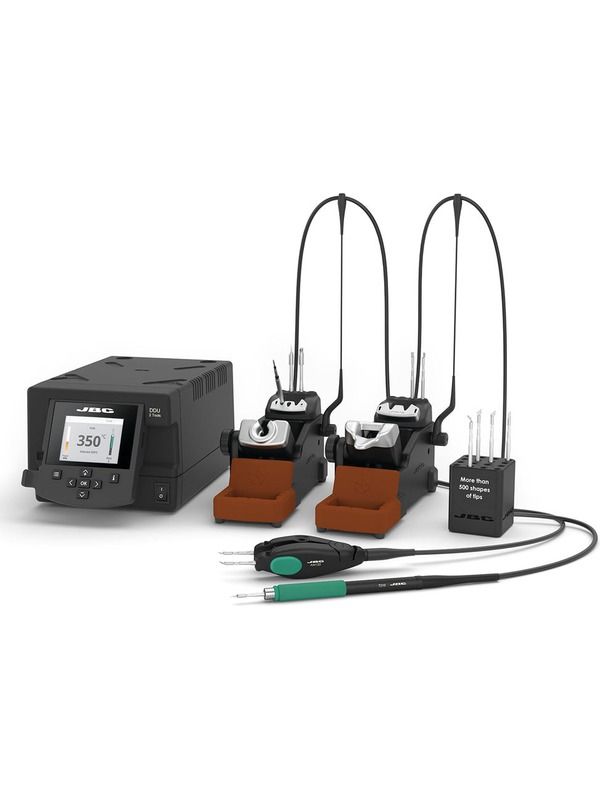

This Precision Rework Station is the perfect solution for fast and precise SMD rework of chip components and small outline ICs.

DDU Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. It works with JBC Exclusive Heating System and the intelligent Sleep & Hibernation Modes.

It comes with T210 Precision Handle and AM120 Adjustable Micro Tweezers. The short distance tip-to-grip of both tools provides the highest precision handling even under the magnifying glass.

T210 works with C210 Cartridge Range and AM120 with C120 Cartridge Range whose exceptional slimness allows reworking components on heavily populated PCBAs without affecting nearby components.

This station includes two stands with a complete cleaning system - a Tip Cleaner with brass wool, as well as, splashguard and antisplash membrane to keep the work area clean and free of solder particles. Quick Cartridge Changer enables a safe, easy and quick cartridge exchange which, combined with Cartridge Holder, allows you to store up to four cartridges. Also, the station includes a SCH Cartridge Holder to store up to 16 cartridges and tips nearby.

NOTE: CARTRIDGES NOT INCLUDED

• DDE 2-Tool Control Unit

• T210 Precision Handle (cartridge not included)

• AM120 Adjustable Micro Tweezers (cartridge not included)

• ADS Stand for T210 & T245 Handles

• AMS Stand for AM120 & PA120 Tweezers

• SCH Cartridge Holder

C120 Series - available to purchase HERE

C210 Series - available to purchase

• Selectable Temperature: 90 to 450 C / 190 to 840 F

• Idle temp. stability (still air): +-1.5C (+-3F), Meets and exceed IPC J-STD-001F

• Temp accuracy: +-3% ( using reference cartridge)

• Temp adjustment: +-50C (+-90F) Through station menu setting

• USB-B (rear): Software PC / Traceability

• USB-A (front): Firmware update Soldering Graphics management

• RJ12 Connector

• Equipotential bonding: Optional connection to EPA

• ESD/EOS Tip to ground vol./ resist.: Meets and exceed, ANSI/ESD S20.20-2014 IPC J-STD-001F

• Peak power: 150 W per tool-23.5 V

• Operating temp. range: 10 to 50 C / 50 to 120 F

• Dimensions & Weight: Premium Stations 232 x 148 x 120 mm / 7.78 kg
