Ignite 20 LED Driving Lamp Curved Lightbar Driving Beam 9-36V 140W ILB606C
(Prior to Dispatch)

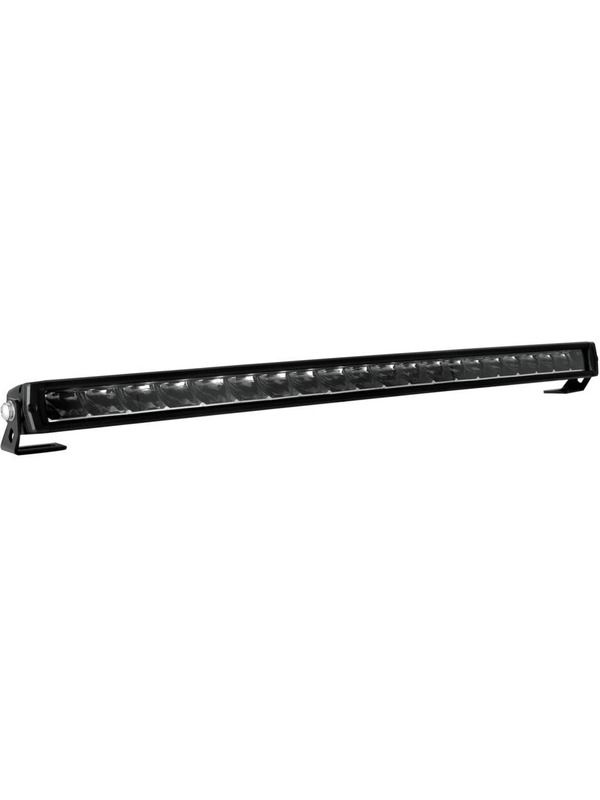

Ignite 20 LED Driving Lamp Curved Lightbar Driving Beam 9-36V 140W
Ignite Ultra Slimline Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 140 Watt
Driving Beam Pattern
20 x 7 Watt High Intensity LP LED's
12,500 Raw and 10,500 Effective Lumens and 6,000K
1 Lux @ 442m and 195,000cd Peak Beam Intensity
Current Draw: 8.9amp @ 12 Volt and 4amp @ 24 Volt
Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112 (Ref 45), R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40C ~ +60C
