Hulk 4x4 Professional Series 60 Amp PWM Solar Charge Controller HU6712
(Prior to Dispatch)

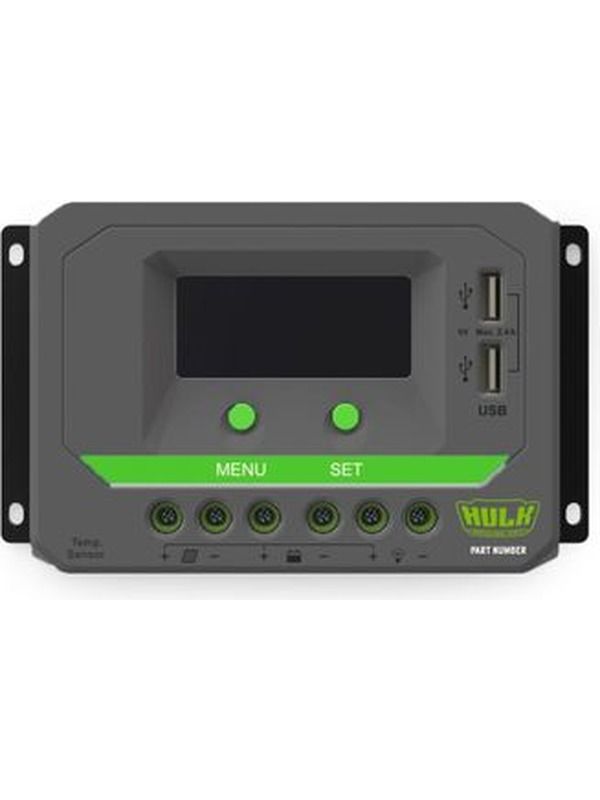

Hulk 4x4 Professional Series 60 Amp PWM Solar Charge Controller
PWM SOLAR CHARGE CONTROLLER
The HULK Professional Series Solar Charge Controllers offer efficient solar power management and reliable performance for all types of charging needs.
The PWM controllers are available in 30 Amp and 60 Amp configurations and feature a built-in LCD display, multiple load control modes, and high-quality components for enhanced durability. They also have extensive electronic protection and support various battery types.
Features:
- Utilises high-quality components from ST, IR, and Infineon for extended product lifespan
- UL and VDE certified terminals ensure safety and reliability
- Can operate continuously at full load within a temperature range of -25 to 55C
- 3-Stage intelligent PWM charging mechanism for efficient charging
- Supports 3 charging options: Sealed, Gel, and Flooded batteries
- Provides extensive electronic protection for enhanced safety
- Backlit LCD display shows operating data and working conditions in real time
- Dual USB ports with 2.4A output for charging electronic devices
- Multiple load control modes for versatility
- Energy statistics function for monitoring power usage
- Battery temperature compensation for improved performance
Additional features include selectable battery type, and compatibility with 12V, 24V, 36V, and 48V systems. The controller also offers electronic protections against various faults, including reverse polarity, overvoltage, over discharge, short circuit, overload, and overheating.
Equalize Charging Voltage* : Sealed:14.6V/ Gel: No/ Flooded:14.8V
Boost Charging Voltage* : Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
Float Charging Voltage* : Sealed/Gel/Flooded:13.8V
Low Voltage Reconnect Voltage* : Sealed/Gel/Flooded:12.6V
Low Voltage Disconnect Voltage* : Sealed/Gel/Flooded:11.1V
* The above parameters are in the 12V system at 25 Deg C, twice in the 24V system, triple in the 36V system and quadruple in the 48V in system.
