Allstar Engine Oil Pan Kit Fabricated Rear Sump 7qt 6" Deep Gasket
Holley Oil Pan Baffle GM LS Retro-fit Natural Chevy 4.8L 5.3L 6.0L Kit
Holley Oil Pan Engine Swap 4.250" Stoke 5.5 Quarts Chevy 4.8 5.3 6.0L 302-1
MPN: 302-1
|
RPI: 104529
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
090127669648
Manufacturer Part Number
302-1
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Sump Style
Wet
Oil Pan Style
Street/Strip
Sump Location
Rear
Oil Pan Capacity
5.50 quarts
Stroker Clearanced
Yes
Maximum Stroke with OE Rod
4.250 in.
Dipstick Provision
No
Dipstick Included
No
Oil Pan Depth (in.)
5.890 in.
Oil Pan Material
Aluminum
Oil Pan Finish
Natural
Baffled
Yes
Kicked Out
No
Windage Tray Included
No
Pickup Included
Yes
Oil Pump Included
No
Oil Pump Driveshaft Included
No
Crank Scraper Included
No
Gaskets Included
No
Hardware Included
No
Quantity
Sold individually.
Notes
Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.

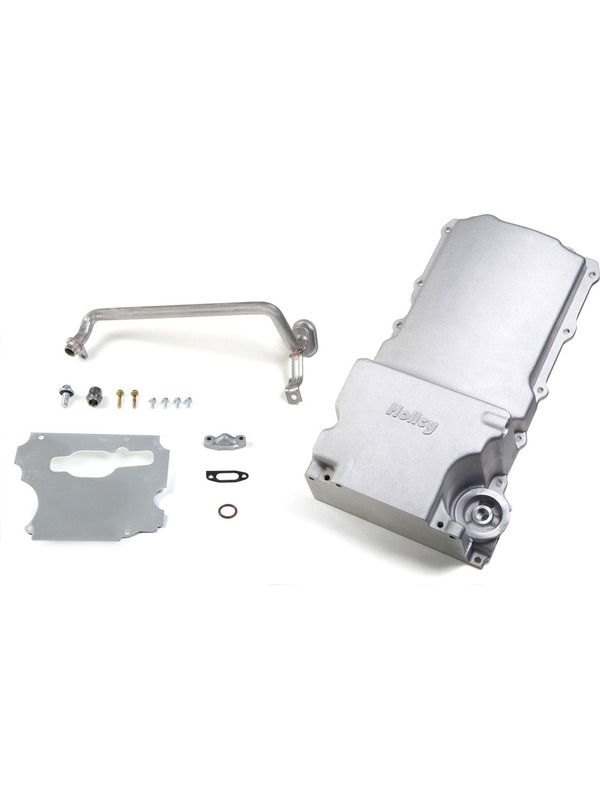

Holley Oil Pan Engine Swap 4.250" Stoke 5.5 Quarts Chevy 4.8 5.3 6.0L Holley GM LS retrofit engine oil pans are designed to install an LS engine in a variety of GM musclecar and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.
Item Specific Information
Brand
GTIN
090127669648
Manufacturer Part Number
302-1
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Sump Style
Wet
Oil Pan Style
Street/Strip
Sump Location
Rear
Oil Pan Capacity
5.50 quarts
Stroker Clearanced
Yes
Maximum Stroke with OE Rod
4.250 in.
Dipstick Provision
No
Dipstick Included
No
Oil Pan Depth (in.)
5.890 in.
Oil Pan Material
Aluminum
Oil Pan Finish
Natural
Baffled
Yes
Kicked Out
No
Windage Tray Included
No
Pickup Included
Yes
Oil Pump Included
No
Oil Pump Driveshaft Included
No
Crank Scraper Included
No
Gaskets Included
No
Hardware Included
No
Quantity
Sold individually.
Notes
Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.
