Holley Fuel Injection System Super Sniper Stealth 4150 Flange Black up 550-877
(Prior to Dispatch)
Holley Fuel Injection System Super Sniper Stealth 4150 Flange Black up
Notes: Fuel Injection System Super Sniper Stealth 4150 Flange Black up to 1250 hp 870 cfm Eight 100 lbs./hr. Injectors Kit

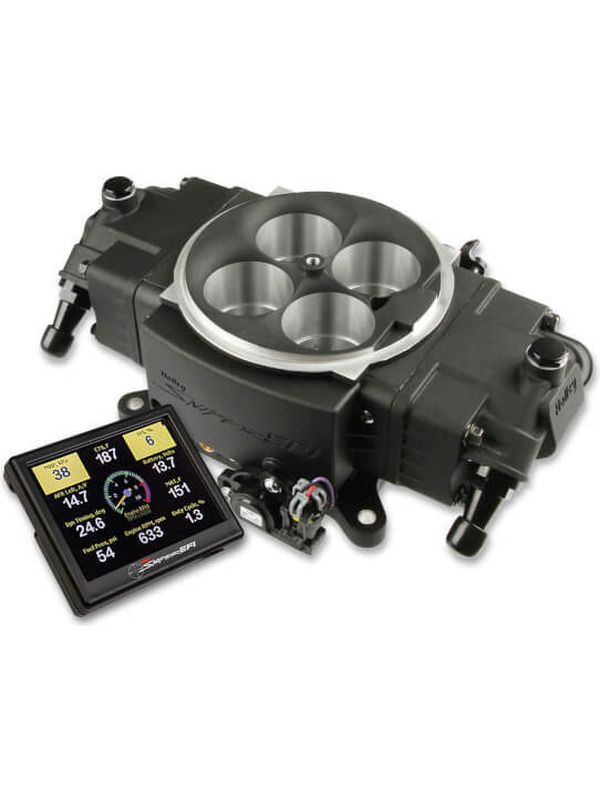

The Super Sniper Stealth 4150 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 1250 HP on forced induction applications. The Sniper Stealth 4150 ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications. Features: Bolt on 4150 Flange Carburetor Replacement Throttle body mounted ECU no extra boxes to mount Supports up to 1250hp with Eight 100 Lb/Hr Injectors! All of the wiring exits below the rear fuel injector cover, for a completely stealth installation. Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor. Programmable inputs and outputs Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors Six Programmable Ground Outputs One +5v Reference Output - +5V Power Supply for 0-5v Sensors One Sensor Ground Ground supply for 0-5v Sensors Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions. Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM) External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886. Integrated ignition timing control High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! Self-tuning ECU means you dont have to be a computer/tuning wiz to have EFI! The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! OEM Style TPS/IAC, for years of dependable service. Available in 3 finishes: Shiny, Black and coming soon, Gold Included clamp-on oxygen sensor kit for 2.25 exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
