Haltech Nexus S3 ECU + Plug and Pin Set HT-213100
MPN: HT-213100
|
RPI: 3245879
$2,871.82
Trackable Shipping
Australia Wide
Handling Time
3-5 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 3-5 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

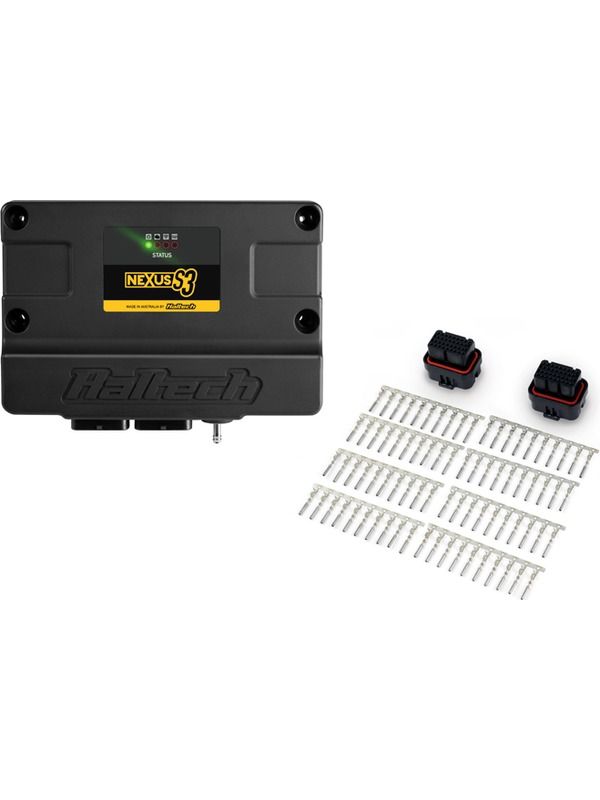

Haltech Nexus S3 ECU + Plug and Pin Set
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
- 34 Pin (Key 1) Plug and Pins
- 34 Pin (Key 2) Plug and Pins
