FAST Xr3000 Ignition Module Only 3000-0001
MPN: 3000-0001
|
RPI: 187124
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

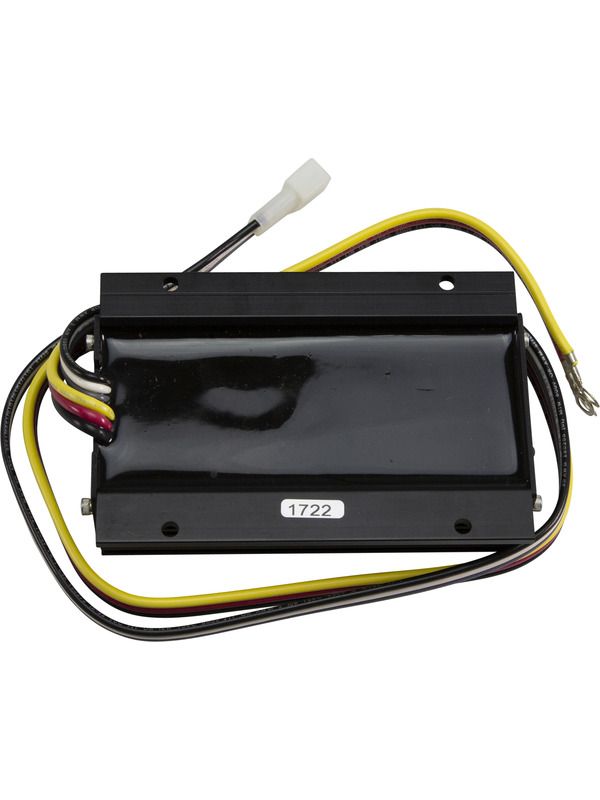

FAST Xr3000 Ignition Module Only
Operating voltage
- 6 to 18 volts, reverse polarity protected,negative ground. Not compatible with 6 volt electrical systems as these may drop below 4 volts during cranking.
Coil current limit
- 4.5 amps internal short circuit protection limit set at 7 amps.
RPM range
- 6,500 RPM
Primary voltage output
- 400 volts (inductive discharge)
Primary energy output
- 90 millijoules with PS91 coil.
Peak spark gap current
- 100 milliamps with PS91 coil.
Spark duration
- 2800 microseconds at 2,000 RPM
Dimensions
- 5 inches L x 3 inches W x 1-1/2 inches H, 1-1/2 lbs.
