Fast Electronics Ignition Coil PS50 Canister Oil Filled 0.400 ohm Fe
Fast Electronics Distributor XDi Sportsman Magnetic Pickup Locked

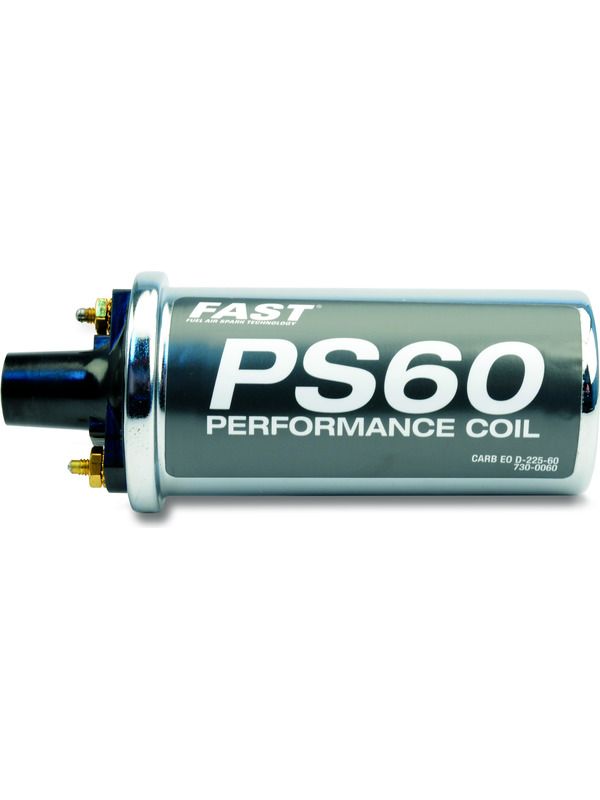

Fast Electronics Ignition Coil PS60 Canister 0.4 ohm Female Socket N 730-0060
MPN: 730-0060
|
RPI: 187204
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
21174037876
Manufacturer Part Number
730-0060
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Ballast Resistor Included
No
Coil Color
Nickel Plated
Coil Internal Construction
Oil-Filled
Coil Shape
Round
Coil Style
Canister
Coil Wire Attachment
Female/Socket
Coil Wire Included
No
Coil Wire Terminal Quantity
1
Diameter
2.125 in
Height
5.75 in
Leakage Inductance
.5 mH
Maximum Voltage
47,000 V
Meets or Exceeds OEM Specs
Yes
Mount Type
Bracket
Mounting Bracket Included
No
Mounting Position
Upright
Oil Filled
Yes
Peak Current
160 mA
Primary Inductance
5.3 mH
Primary Resistance
.40 ohms
Quantity
Sold Individually
Secondary Inductance
15 H
Secondary Resistance
3.8K ohms
Spark Duration
385 uS
Terminal Quantity
2
Turns Ratio
54:1
Weight
1.75 lbs
Fast Electronics Ignition Coil PS60 Canister 0.4 ohm Female Socket N PS SeriesCoils
The PS50and PS60 Coils are ideal forstreet cars packing a littlemore power and are running aFAST I6 Ignition or XR-3000Breakerless ConversionSystem.
These coilsfeature lower resistancewindings to ensure the mostvoltage possible is broughtinto the coil with anoptimized turns ratio for thebest output. This combinationis ideal for engines thatendure higher RPM andperformance such as circletrack, road racing andoff-road racing. The coils arefilled with oil for optimumcooling and are housed in asturdy steel canister that canhandle the abuse of racing.They're topped off with analkyd molded top and brass,screw-type terminals.
Item Specific Information
Brand
GTIN
21174037876
Manufacturer Part Number
730-0060
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Ballast Resistor Included
No
Coil Color
Nickel Plated
Coil Internal Construction
Oil-Filled
Coil Shape
Round
Coil Style
Canister
Coil Wire Attachment
Female/Socket
Coil Wire Included
No
Coil Wire Terminal Quantity
1
Diameter
2.125 in
Height
5.75 in
Leakage Inductance
.5 mH
Maximum Voltage
47,000 V
Meets or Exceeds OEM Specs
Yes
Mount Type
Bracket
Mounting Bracket Included
No
Mounting Position
Upright
Oil Filled
Yes
Peak Current
160 mA
Primary Inductance
5.3 mH
Primary Resistance
.40 ohms
Quantity
Sold Individually
Secondary Inductance
15 H
Secondary Resistance
3.8K ohms
Spark Duration
385 uS
Terminal Quantity
2
Turns Ratio
54:1
Weight
1.75 lbs
