FAST Xr700 Ignition Module Only
Fast Electronics Ignition Coil PS40 Canister Oil Filled 1.400 ohm Fe
Fast Electronics Ignition Coil PS20 Canister Oil Filled 1.400 ohm Fe 730-0020
MPN: 730-0020
|
RPI: 187201
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
21174033410
Manufacturer Part Number
730-0020
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Ballast Resistor Included
Yes
Coil Color
Black
Coil Internal Construction
Oil-Filled
Coil Shape
Round
Coil Style
Canister
Coil Wire Attachment
Female/Socket
Coil Wire Included
No
Coil Wire Terminal Quantity
1
Diameter
2.125 in
Height
5.75 in
Leakage Inductance
1.3 mH
Maximum Voltage
46,000 V
Meets or Exceeds OEM Specs
Yes
Mount Type
Bracket
Mounting Bracket Included
No
Mounting Position
Upright
Oil Filled
Yes
Peak Current
145 mA
Primary Inductance
7.5 mH
Primary Resistance
1.4 ohms
Quantity
Sold Individually
Secondary Inductance
26 H
Secondary Resistance
5.2K ohms
Spark Duration
385 uS
Terminal Quantity
2
Turns Ratio
60:1
Weight
1.75 lbs

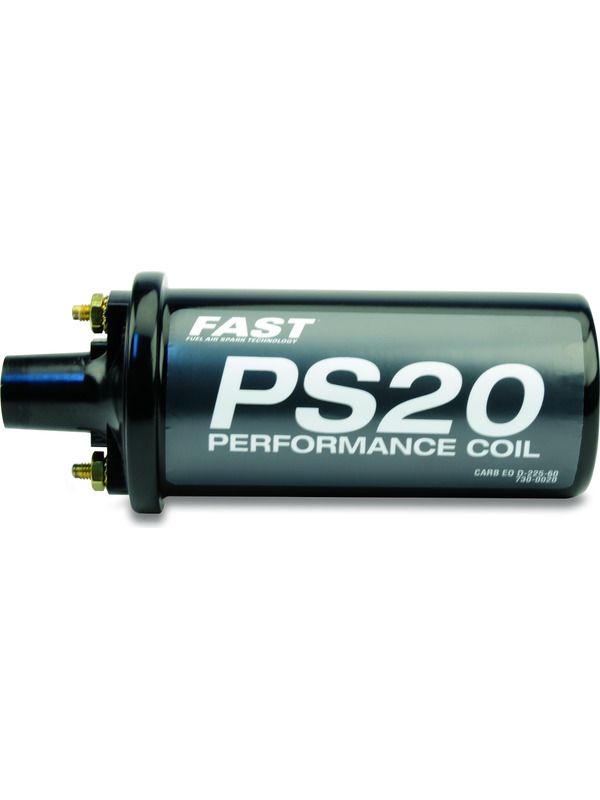

Fast Electronics Ignition Coil PS20 Canister Oil Filled 1.400 ohm Fe PS SeriesCoils
The PS20and PS40 Coils are designed toenhance the output of factoryignition systems. They fit inplace of most OEM canistercoils, and thanks to theirlower resistance and optimizedturns ratio, will produce ahigher output spark when usedwith breaker points, amplifiedignitions or with the FASTXR-i Points Replacementsystem.
These coils willreliably deliver a high outputspark through 6,500 RPM onmild street performanceapplications and are oilfilled to keep the windingscool. Both coils are suppliedwith a ballast resistor whichis required if you plan tofire up your original breakerpoint style ignitionsystem.
Item Specific Information
Brand
GTIN
21174033410
Manufacturer Part Number
730-0020
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Ballast Resistor Included
Yes
Coil Color
Black
Coil Internal Construction
Oil-Filled
Coil Shape
Round
Coil Style
Canister
Coil Wire Attachment
Female/Socket
Coil Wire Included
No
Coil Wire Terminal Quantity
1
Diameter
2.125 in
Height
5.75 in
Leakage Inductance
1.3 mH
Maximum Voltage
46,000 V
Meets or Exceeds OEM Specs
Yes
Mount Type
Bracket
Mounting Bracket Included
No
Mounting Position
Upright
Oil Filled
Yes
Peak Current
145 mA
Primary Inductance
7.5 mH
Primary Resistance
1.4 ohms
Quantity
Sold Individually
Secondary Inductance
26 H
Secondary Resistance
5.2K ohms
Spark Duration
385 uS
Terminal Quantity
2
Turns Ratio
60:1
Weight
1.75 lbs
