Fast XDi Dual Sync Distributor For Small Block Ford
Fast Electronics Ignition Coil PS92N E-Core 0.200 ohm Male HEI 90 De

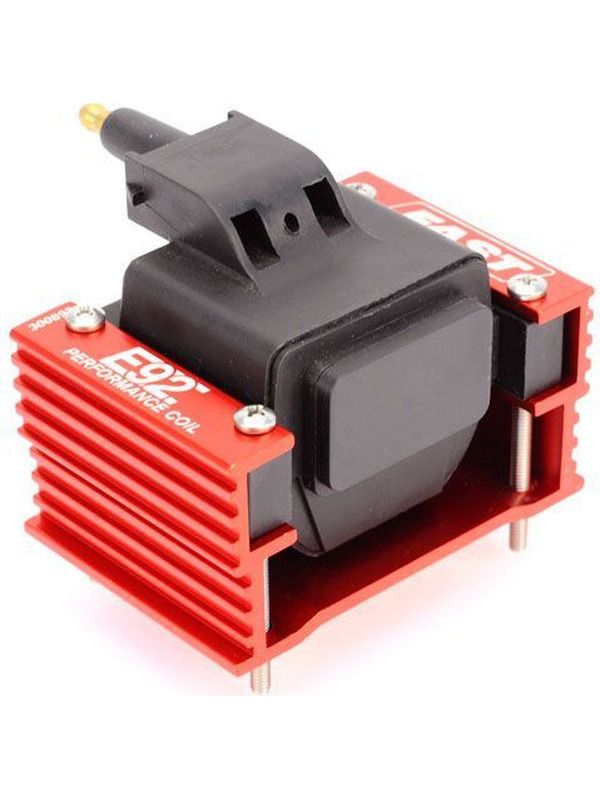

Fast E92 Performance/Street Ignition Coil 308250
MPN: 308250
|
RPI: 2218691
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584286448
Manufacturer Part Number
308250
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Ballast Resistor Included
No
Coil Color
Black
Coil Internal Construction
Epoxy
Coil Shape
Square
Coil Style
E-Core
Coil Wire Attachment
Male/HEI
Coil Wire Included
No
Coil Wire Terminal Quantity
1
Height
3 in
Leakage Inductance
.14 mH
Length
3.75 in
Maximum Voltage
48,500 V
Meets or Exceeds OEM Specs
Yes
Mount Type
Integral
Mounting Bracket Included
Yes
Mounting Position
Any
Oil Filled
No
Peak Current
510 mA
Primary Inductance
1.7 mH
Primary Resistance
.23 ohms
Quantity
Sold Individually
Secondary Inductance
5.5 H
Secondary Resistance
920 ohms
Spark Duration
245 uS
Terminal Quantity
2
Turns Ratio
60:1
Weight
1.25 lbs
Width
2.5 in
The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
