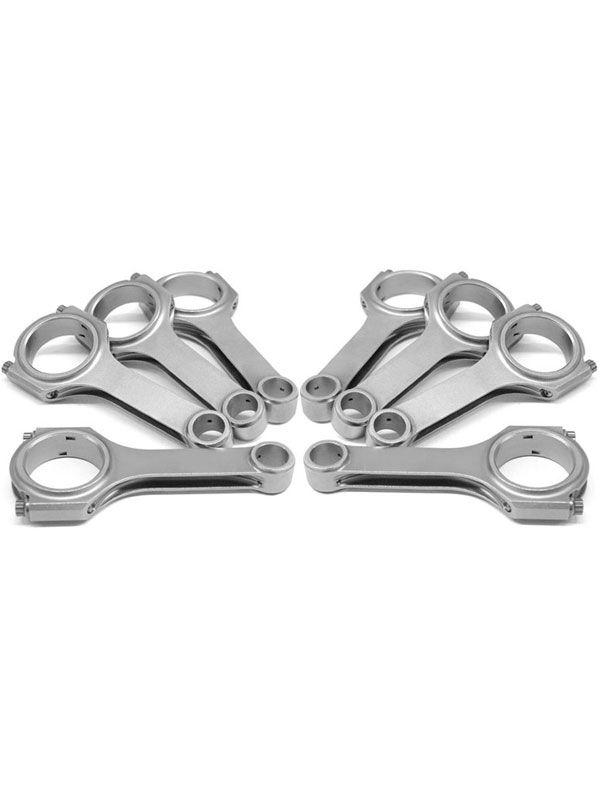

Eagle Crankshafts H-Beam Conrod Set Ford Clev 351C 5.780" Std Leng CRS5780F3D

Eagle Crankshafts H-Beam Conrod Set Ford Clev 351C 5.780" Std Leng

The Eagle ESP H-beamconnecting rods are a2-piece, forged,vacuum-degassed,4340-certified steelconstruction that providesoutstanding strength, whilestill weighing much less thanstock rods. Each rod ismulti-stage heat-treated,X-rayed, sonic-tested,magnafluxed, 100 percentmachined and then shot-peenedto stress-relieve the metal.The rods have precision capalignment sleeves topositively locate each rodcap, silicon bronze bushingsfor floating pin models andare available in strokermodels that allow additionalcam-to-rod clearance forlarge stroke combinations.They come standard with190,000 psi rated ARP 8740and 230,000 psi rated ARP2000 rod bolts.

351C,uses 351W bearing

Rod Specification

BoltType: 7/16" ARP8740
Pin Fit: Bushed
Maximum HP: 750
Rod Length:5.780"
RodJournal: 2.311"
Pin Size: .913"
