Eagle Connecting Rod H Beam 5.090 in Long Bushed 7/16 in Cap Screw CRS5090F3D
(Prior to Dispatch)

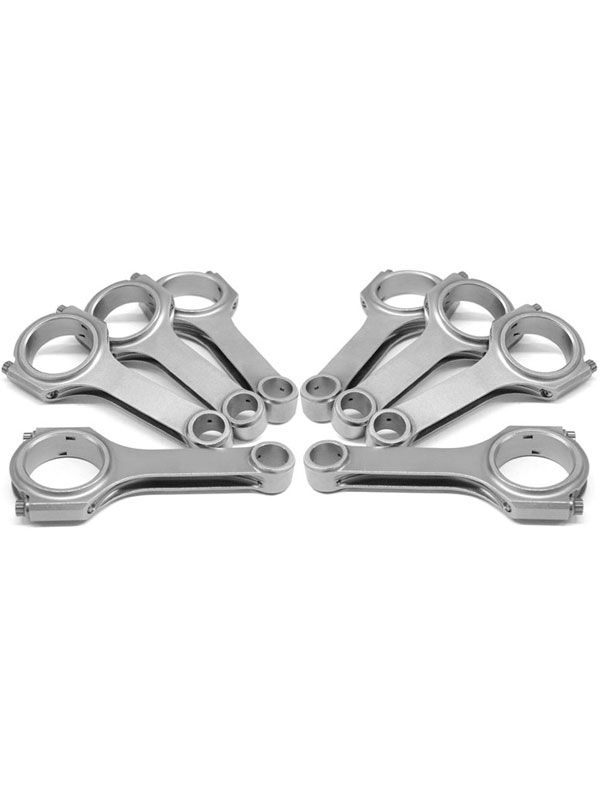

Eagle Connecting Rod H Beam 5.090 in Long Bushed 7/16 in Cap Screw
The Eagle ESP H-beamconnecting rods are a2-piece, forged,vacuum-degassed,4340-certified steelconstruction that providesoutstanding strength, whilestill weighing much less thanstock rods. Each rod ismulti-stage heat-treated,X-rayed, sonic-tested,magnafluxed, 100 percentmachined and then shot-peenedto stress-relieve the metal.The rods have precision capalignment sleeves topositively locate each rodcap, silicon bronze bushingsfor floating pin models andare available in strokermodels that allow additionalcam-to-rod clearance forlarge stroke combinations.They come standard with190,000 psi rated ARP 8740and 230,000 psi rated ARP2000 rod bolts
Standardlength rod for 302W & 5.0L
Rod Specification
BoltType: 7/16" ARP8740
Pin Fit: Bushed
Maximum HP: 750
Rod Length:5.090"
Rod Journal:2.123"
PinSize: .912"
