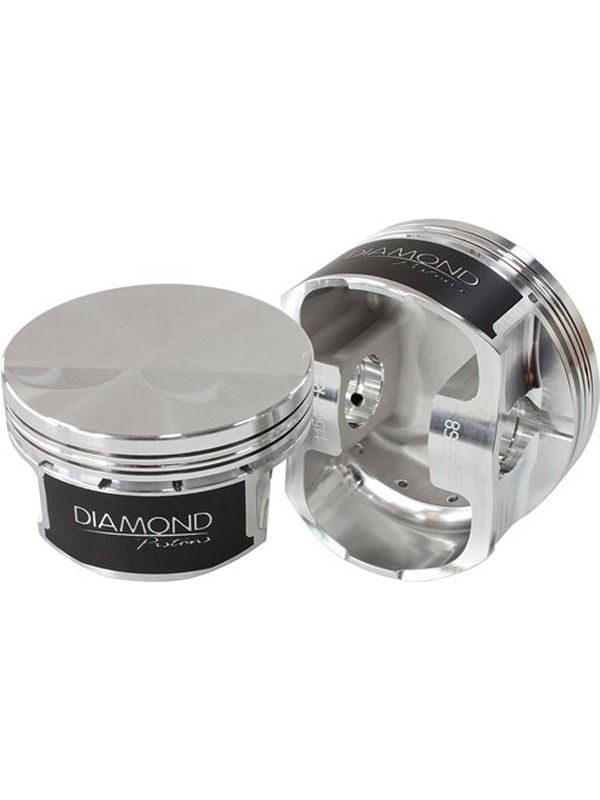

Diamond Piston LS3 L98 4.065 Bore Fits Chevy LS Flat Top Set of 8
The pistons from Diamond Pistons are suitable for use on the street as well as at the drag strip. Domestic engines with high-compression, forced induction, or nitrous-fed engines are designed and tested for high-stresses. These forged aluminium pistons are precisely built for your engine to produce the performance you need, and they are engineered with lifespan, reliability, and strength in mind.
LS9/LSA Competition SeriesPiston Features:- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250"
- Ratios figured for .040 head gasket
- Premium 1.2mm x 1.2mm x 3.0mm ring package included
- Premium 8620 .185W wrist pins included
- Valve pocket depth: 0.178" intake and .108" exhaust
- 2618 material for High HP-NOS-Boost applications
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Pins, Lock's & Support Rails (if required) included
- SKU:11543-R1-8
- Item #:11543-R1-8
- Brand:Diamond Racing - Pistons
- Bore:4.065
- CC:-2.0cc
- Chamber CC:70
- Comp Height:1.304
- Compression Ratio:10.4
- Cylinder Qty:8
- Engine Make:Chevrolet
- Pin:.927 x 2.500
- Ring Thickness:1.2mm x 1.2mm x 3.0mm
- Rod:6.125
- Stroke:3.622
- VP Exhaust Depth:0.105
- VP Intake Depth:0.176
- Weight:457
- Chevrolet-Chevy LS-LS3-L92 Competition Series
