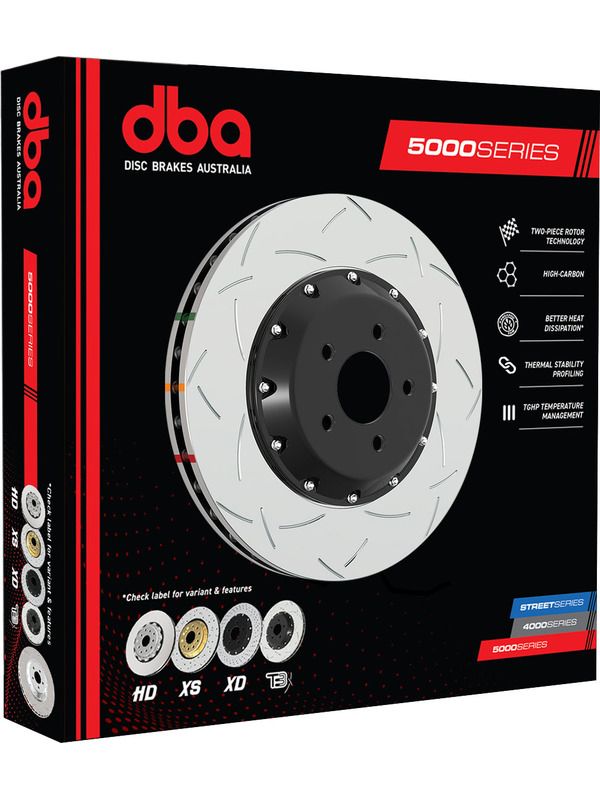

DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 340mm DBA52830BLKS
MPN: DBA52830BLKS
|
RPI: 80470
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 340mm Fits Volkswagen, Audi, Cupra, Skoda
Sharing all the benefits of the 4000 Series, DBAs 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6)
The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.
The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminium hats.
This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings).
DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications.
DBAs 5000 Series rotors feature:
- Aluminium hats (T6061-T6)
- Replacement disc rotors available
- XG-150 High Carbon Alloyed Iron
- TSP (Thermal Stability Profiling)
- Thermo-graphic Paint markings (THGP)
- Direct replacement suitability
- Moisture proof corrosion protection packaging
- T3 Slot 48 precision CNC machined slots
- Kangaroo Paw 144 diamond and tear drop pillar ventilation system*
- XG150 High Carbon Alloyed Iron
- Thermographic Temperature Monitoring
- Paint protection on non-friction areas
Advantage
- Tri-Symmetrical curve slots dampens the vibration harmonics or noise
- Increased number of out-gassing exit points for brake pad friction gasses to escape through
- Universal slot design
- Increased surface area resulting in greater heat dissipation
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
- Special formulation designed to respond to DBAs TSP process
- Heat paint markings change colour at specific temperature thresholds
- When temperature thresholds are exceeded paint markings will permanently change colours
- Reduces corrosion
Benefit
- A quieter, responsive and smoother brake pedal feel
- Increases the consistency and effectiveness of every brake stop
- Eliminates the need for left and right discs
- Minimises brake fade and increases braking effectiveness
- Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
- Minimises warping and cracking and prolongs the service life of the rotor
- Offers the driver a clear indication of peak braking temperatures
- Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
- Stops any unsightly rust formation
*Kangaroo Paw is not available on all part numbers
Suitable for the various Australian vehicle models listed below. This is a guide only.
Add your vehicle details to My Garage to ensure it fits your vehicle. This will activate our 100% Fitment Guaranteed.
- Audi A3 1.6 8VK,8V1 TDI 2013-2017
- Audi A3 2.0 8VE,8V7 TDI 2013-2016
- Audi A3 2.0 8VK,8V1 TDI 2012-2016
- Audi Q3 2.0 F3N Sportback 40 TFSI quattro 2019-2023
- Audi S3 2.0 8VE,8V7 S3 quattro 2014-2016
- Audi S3 2.0 8VE,8V8 S3 quattro 2016-2020
- Audi S3 2.0 8VF,8VA Sportback S3 quattro 2016-2020
- Audi S3 2.0 8VK,8V1 S3 quattro 2013-2016
- Audi S3 2.0 8VS,8VM Limousine S3 quattro 2013-2016
- Audi TT 1.8 8J3 TFSI 2008-2014
- Audi TT 1.8 8J9 Roadster TFSI 2008-2014
- Audi TT 2.0 8J3 TDI quattro 2008-2014
- Audi TT 2.0 8J3 TFSI 2006-2014
- Audi TT 2.0 8J3 TFSI quattro 2010-2014
- Audi TT 2.0 8J3 TTS quattro 2008-2014
- Audi TT 2.0 8J9 Roadster TDI quattro 2008-2014
- Audi TT 2.0 8J9 Roadster TFSI 2007-2014
- Audi TT 2.0 8J9 Roadster TTS quattro 2008-2014
- Audi TT 2.0 FV3,FVP TFSI 2014-2019
- Audi TT 2.0 FV3,FVP TFSI quattro 2014-2021
- Audi TT 2.0 FV3,FVP TTS quattro 2015-2021
- Audi TT 2.0 FV9,FVR Roadster TFSI 2014-2019
- Audi TT 2.0 FV9,FVR Roadster TFSI quattro 2014-2019
- Audi TT 2.0 FV9,FVR Roadster TTS quattro 2015-2019
- Audi TT 3.2 8J3 V6 quattro 2006-2010
- Audi TT 3.2 8J9 Roadster V6 quattro 2007-2010
- Audi TT 3.2 8N9 Roadster VR6 quattro 2004-2006
- Cupra Formentor 2.0 KM7 TSI 4Drive 2022-2023
- Cupra Leon 2.0 KL1 TSI 2022-2023
- Skoda Kodiaq 2.0 NS6,NS7,NV7 RS 4x4 2021-2023
- Skoda Kodiaq 2.0 NS6,NS7,NV7 RS Bi-TDI 4x4 2018-2021
- Skoda Kodiaq 2.0 NS6,NS7,NV7 TSI 4x4 2016-2021
- Skoda Kodiaq 2.0 NS7,NV7 TDI 4x4 2016-2018
- Skoda Octavia 1.4 NE(5E3) TSI 2012-2015
- Skoda Octavia 1.4 NE(5E5) Combi TSI 2012-2021
- Skoda Octavia 1.8 NE(5E3) TSI 2012-2015
- Skoda Octavia 1.8 NE(5E5) Combi TSI 2012-2015
- Skoda Octavia 1.8 NE(5E5) Combi TSI 4x4 2012-2017
- Skoda Octavia 2.0 1Z3 TDI 2005-2010
- Skoda Octavia 2.0 1Z3 TDI 16V 2008-2013
- Skoda Octavia 2.0 1Z3 TDI RS 2006-2013
- Skoda Octavia 2.0 1Z5 Combi TDI RS 2006-2013
- Skoda Octavia 2.0 1Z5 Combi TFSI 2005-2013
- Skoda Octavia 2.0 NE(5E3) TDI 2012-2017
- Skoda Octavia 2.0 NE(5E3) TDI RS 2013-2018
- Skoda Octavia 2.0 NE(5E3) TSI RS 2013-2017
- Skoda Octavia 2.0 NE(5E5) Combi TDI 2012-2017
- Skoda Octavia 2.0 NE(5E5) Combi TDI 4x4 2012-2017
- Skoda Octavia 2.0 NE(5E5) Combi TDI RS 2013-2018
- Skoda Octavia 2.0 NE(5E5) Combi TSI RS 2012-2021
- Skoda Superb 2.0 3V3 TDI 2015-2018
- Skoda Superb 2.0 3V3 TSI 2015-2021
- Skoda Superb 2.0 3V3 TSI 4x4 2015-2021
- Skoda Superb 2.0 3V5 TDI 2015-2018
- Skoda Superb 2.0 3V5 TSI 2015-2021
- Skoda Superb 2.0 3V5 TSI 4x4 2015-2021
- Volkswagen Arteon 2.0 3H7,3H8 TSI 4motion 2017-2020
- Volkswagen Golf 1.8 Alltrack MKVII,BA5,BV5 Variant TSI 4motion 2014-2020
- Volkswagen Golf 2.0 MKVII,5G1,BQ1,BE1,BE2 GTI 2013-2018
- Volkswagen Golf 2.0 MKVII,5G1,BQ1,BE1,BE2 GTI Clubsport 2016-2017
- Volkswagen Golf 2.0 MKVII,5G1,BQ1,BE1,BE2 R 4motion 2013-2020
- Volkswagen Passat Alltrack 2.0 3C(365) TDI 4motion 2012-2014
- Volkswagen Passat CC 2.0 358 TDI 2011-2016
- Volkswagen Passat CC 3.6 358 FSI 4motion 2011-2016
- Volkswagen Passat 1.8 3C2 TSI 2007-2010
- Volkswagen Passat 1.8 3G2(B8) TSI 2015-2019
- Volkswagen Passat 1.8 3G5(B8) Variant TSI 2015-2019
- Volkswagen Passat 2.0 3C(362) TDI 2010-2014
- Volkswagen Passat 2.0 3C(365) Variant TDI 2010-2014
- Volkswagen Passat 2.0 3G2(B8) TDI 2014-2021
- Volkswagen Passat 2.0 3G2(B8) TSI 4motion 2016-2019
- Volkswagen Passat 2.0 3G5(B8) Variant TDI 2014-2021
- Volkswagen Passat 2.0 3G5(B8) Variant TDI 4motion 2014-2021
- Volkswagen Passat 2.0 3G5(B8) Variant TSI 4motion 2016-2019
- Volkswagen Tiguan 2.0 AD1,AX1 TDI 4motion 2016-2020
- Volkswagen Tiguan 2.0 AD1,AX1 TSI 4motion 2016-2021
- Volkswagen Tiguan 2.0 AX1 TDI 4motion 2020-2023
