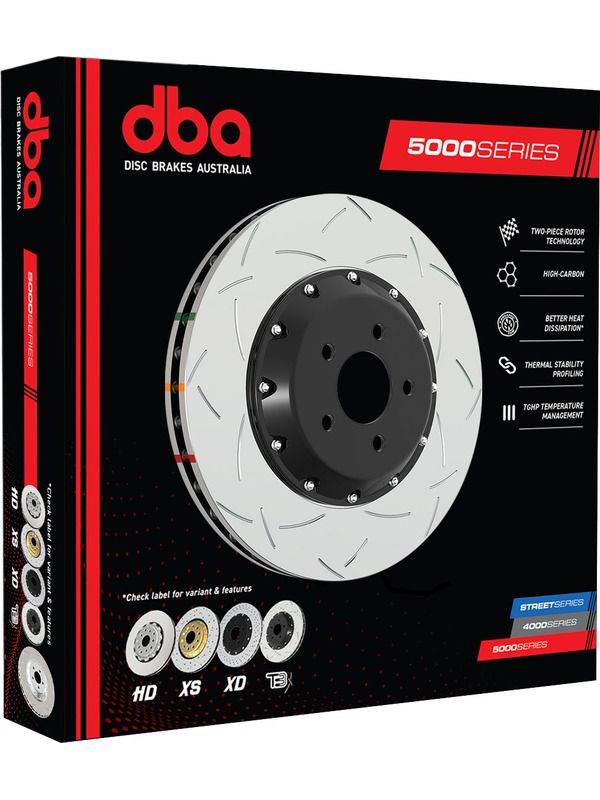

DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 326mm DBA5654BLKS-10

DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 326mm Fits Subaru BRZ, Levorg, Impreza, Liberty, WRX

Sharing all the benefits of the 4000 Series, DBAs 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6)

The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.

The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminium hats.

This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings).

DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications.

DBAs 5000 Series rotors feature:

• Aluminium hats (T6061-T6)
• Replacement disc rotors available
• XG-150 High Carbon Alloyed Iron
• TSP (Thermal Stability Profiling)
• Thermo-graphic Paint markings (THGP)
• Direct replacement suitability
• Moisture proof corrosion protection packaging

• T3 Slot 48 precision CNC machined slots
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system*
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring
• Paint protection on non-friction areas

Advantage

• Tri-Symmetrical curve slots dampens the vibration harmonics or noise
• Increased number of out-gassing exit points for brake pad friction gasses to escape through
• Universal slot design
• Increased surface area resulting in greater heat dissipation
• An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
• Special formulation designed to respond to DBAs TSP process
• Heat paint markings change colour at specific temperature thresholds
• When temperature thresholds are exceeded paint markings will permanently change colours
• Reduces corrosion

Benefit

• A quieter, responsive and smoother brake pedal feel
• Increases the consistency and effectiveness of every brake stop
• Eliminates the need for left and right discs
• Minimises brake fade and increases braking effectiveness
• Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
• Minimises warping and cracking and prolongs the service life of the rotor
• Offers the driver a clear indication of peak braking temperatures
• Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
• Stops any unsightly rust formation

*Kangaroo Paw is not available on all part numbers

Suitable for the various Australian vehicle models listed below. This is a guide only.
Add your vehicle details to My Garage to ensure it fits your vehicle. This will activate our 100% Fitment Guaranteed.

• Subaru BRZ 2.0 Z1 2016-2021
• Subaru Impreza 2.0 GD,GDB AWD 2005-2007
• Subaru Impreza 2.0 GD,GDB WRX STi AWD 2001-2005
• Subaru Impreza 2.5 GD,GDF WRX STi AWD 2005-2007
• Subaru Impreza 2.5 GR,GVF WRX / WRX STI AWD 2011-2013
• Subaru Levorg 2.0 EK(V1) AWD 2016-2020
• Subaru Liberty 2.5 B13,BP,BP9 STI AWD 2006-2009
• Subaru Liberty 2.5 B13,BP,BP9 T AWD 2006-2009
• Subaru Liberty 2.5 BL,BL9 STI AWD 2006-2009
• Subaru WRX 2.0 GJ,GK6/GK8(V1) AWD 2013-2023
• Subaru WRX 2.5 GJ,FKH(V1) 2,5 WRX STi AWD 2014-2021
