Comp Cams Stage 1 LST Cam Kit for LT1 Camaro and Corvette w/ AFM
Comp Cams Stage 1 LST Cam Kit for LS3 Corvette/Camaro w/ Manual Tr

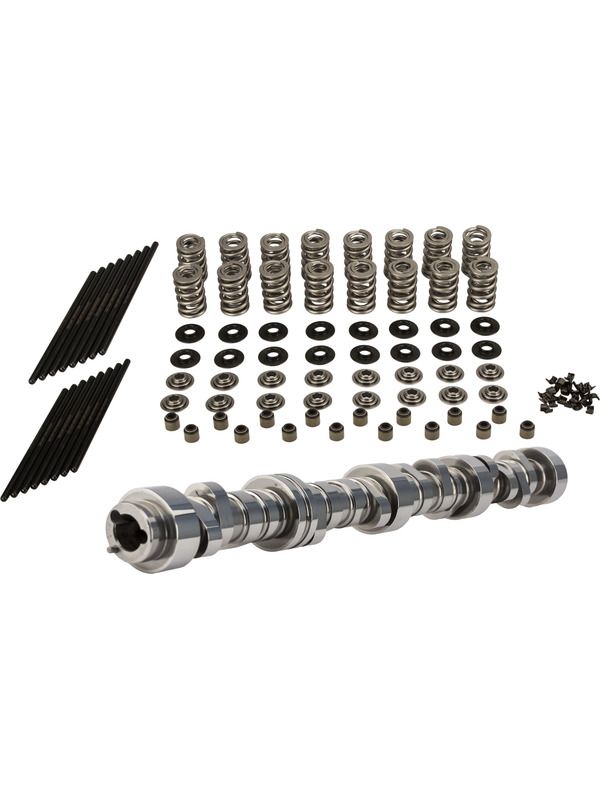

Comp Cams Stage 2 LST Cam Kit for LT1 Camaro and Corvette w/ AFM CK224-302-13
MPN: CK224-302-13
|
RPI: 2595259
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584387343
Manufacturer Part Number
CK224-302-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Advertised Exhaust Duration
297
Advertised Intake Duration
290
Assembly Lubricant Included
No
Basic Operating RPM Range
2,700-7,400
Cam Type
Hydraulic Roller
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
Low Shock Technology
Engine Family
GM GEN V LT w/ VVT w/o AFM 2014-Present
Exhaust Duration at .050 inch Lift
248
Exhaust Valve Lift
0.643 in
Grind Number
290LMH20
Intake Duration at .050 Inch Lift
235
Intake Valve Lift
0.65 in
Lifter Type
Hydraulic Roller
Lifters Included
No
Lobe Separation
120
Usage
Street/Strip
Stage
2
Gaskets Included
No
Locks Included
Yes
Pushrods Included
Yes
Recommended Upgraded Stock Rocker Arms
0
Retainers Included
Yes
Timing Set Included
No
Valve Seals Included
Yes
Valve Spring Seats Included
Yes
Valve Springs Included
Yes
Kit Type
CK-Kit
Recommended Max-Lift BSR Shaft Rocker System
0
Recommended Cam Install Kit for Camaro
5624
Recommended Cam Install Kit for Corvette
5626
Notes: Stage 2 LST Cam Kit for LT1 Camaro and Corvette w/ AFM Delete COMP Cams Stage 1 LST Camshaft Packages for GM LS applications take the guesswork out of choosing the right valve train upgrade package for your specific engine and desired performance. The Low Shock Technology behind COMP Cams LST Camshaft Packages features lobe profiles designed to maximize horsepower, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. By Spintron and dyno testing these new profiles with many combinations of valve train components, COMP Cams engineers have created valve train packages that are perfectly matched for maximum horsepower and dependability in all popular LS applications with varying modifications. Stage 1 LST kits commonly add 60+ horsepower, depending on application.
