COMP Cams Ls1 Hyd Roller Cam Xr277Hr 224/228@50 .534/537" 112
COMP Cams Ls1 Hyd Roller Cam Xr281Hr 228/230@50 .571/573" 112

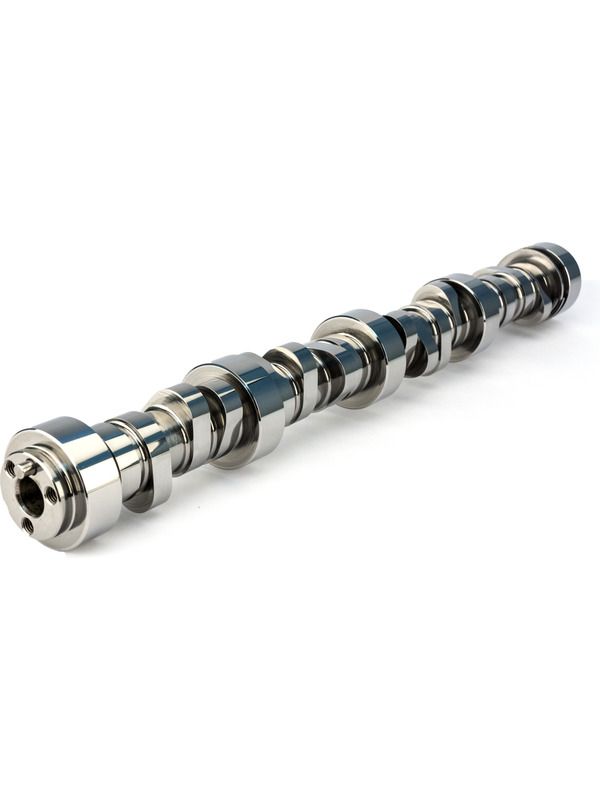

COMP Cams Ls1 Hyd Roller Cam Xr275Hr 222/224@50 .566/568" 112 54-426-11
MPN: 54-426-11
|
RPI: 184869
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584068266 |
| Manufacturer Part Number |
54-426-11 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic roller, OE roller |
| Camshaft Use |
Street/Strip |
| Basic Operating RPM Range |
1,800-6,800 |
| Intake Duration at 050 inch Lift |
222 |
| Exhaust Duration at 050 inch Lift |
224 |
| Duration at 050 inch Lift |
222 int./224 exh. |
| Advertised Intake Duration |
275 |
| Advertised Exhaust Duration |
277 |
| Advertised Duration |
275 int./277 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.566 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.568 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.566 int./0.568 exh. |
| Lobe Separation (degrees) |
112 |
| Camshaft Gear Attachment |
3-bolt |
| Remanufactured |
No |
| Computer-Controlled Compatible |
Yes |
| Grind Number |
XR275HR |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
| Notes |
Requires custom computer tuning. |
COMP Cams Ls1 Hyd Roller Cam Xr275Hr 222/224@50 .566/568" 112
- Rpm operating range1800 - 6800
- Durationadvertised Inlet 275,Exh 277
- Duration advertised @ .050"Inlet 222, Exh 224
- Valve lift with 1.7rocker Inlet .566", Exh .568"
- Lobe separationangle 112
