COMP Cams Ls1 Hyd Roller Cam Tpx254Hr-16 202/212@50 .507/500" 116
COMP Cams Solid Lifters, Chev .842" Od Perf Series With Edm Oil Hole

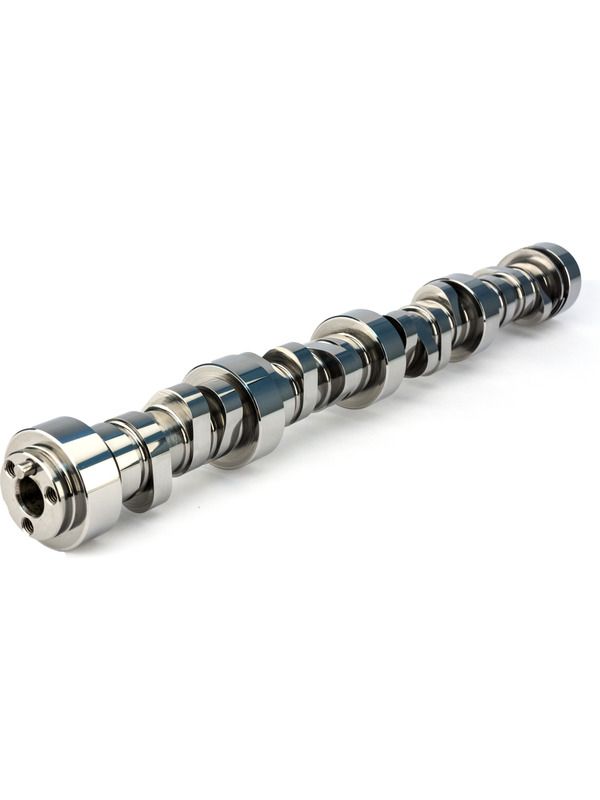

COMP Cams Ls1 Hyd Roller Cam 283Thr9 227/241@50 .563/546" 109 54-601-11
MPN: 54-601-11
|
RPI: 184882
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584195177 |
| Manufacturer Part Number |
54-601-11 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic roller, OE roller |
| Camshaft Use |
Street/Strip |
| Basic Operating RPM Range |
2,300-6,600 |
| Intake Duration at 050 inch Lift |
227 |
| Exhaust Duration at 050 inch Lift |
241 |
| Duration at 050 inch Lift |
227 int./241 exh. |
| Advertised Intake Duration |
283 |
| Advertised Exhaust Duration |
303 |
| Advertised Duration |
283 int./303 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.563 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.546 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.563 int./0.546 exh. |
| Lobe Separation (degrees) |
109 |
| Camshaft Gear Attachment |
3-bolt |
| Remanufactured |
No |
| Computer-Controlled Compatible |
Yes |
| Grind Number |
283THR9 |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
| Notes |
Cannot use stock springs. Stall converter 2500 and up, 9 |
COMP Cams Ls1 Hyd Roller Cam 283Thr9 227/241@50 .563/546" 109
- Rpm operating range2300 - 6600
- Durationadvertised Inlet 283,Exh 303
- Duration advertised @ .050"Inlet 227, Exh 241
- Valve lift with 1.7rocker Inlet .563", Exh .546"
- Lobe separationangle 109
