COMP Cams Ls Beehive Valve Spring Kit Steel Retainers, .600" Max
COMP Cams Valve Spring Shim Kit, 1.250" Od, .814" Id, .015-.030-.060"
COMP Cams Ls Beehive Valve Spring Kit Steel Retainers, .625" Max 26918CS-KIT
MPN: 26918CS-KIT
|
RPI: 184599
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584225485
Manufacturer Part Number
26918CS-KIT
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Valve Spring Style
Beehive
Number of Springs Per Valve
Single
Maximum Valve Lift (in.)
0.625 in.
Retainers Included
Yes
Retainer Material
Steel
Outside Diameter of Outer Spring (in.)
1.075 in./1.310 in.
Coil Bind Height (in.)
1.140 in.
Damper Spring Included
No
Spring Rate (lbs/in.)
372 lbs./in.
Inside Diameter of Outer Spring (in.)
0.650 in./0.885 in.
Locks Included
Yes
Lock Material
Hardened steel
Lock Groove Quantity
1-groove
Lock Style
7 degree
Valve Stem Seals Included
Yes
Valve Springs Coated
No
Valve Stem Diameter (in.)
0.314 in.
Valve Stem Diameter (mm)
7.97mm
Remanufactured
No
Quantity
Sold as a kit.

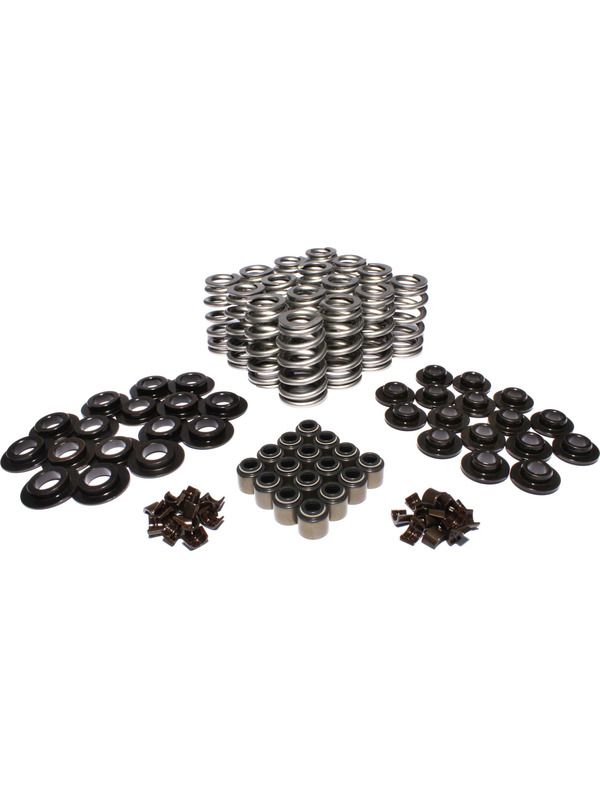

COMP Cams Ls Beehive Valve Spring Kit Steel Retainers, .625" Max This Beehive Valve SpringKit for LS engines is designedfor hydraulic roller cams andincludes carefully matchedBeehive Springs, retainers,locks, seals and spring seats.With a .625" maximum lift,these Beehive Valve Springsdeliver increased valve trainstability and a much lightervalve train. This is achievedwith less spring pressure forbetter valve control andreduced weight of both thespring and retainer. Theunique Beehive shape handlesvalve train stress moreefficiently to eliminatedamaging harmonics andincreases high RPM horsepowerand durability. Theoval/multi-arc wire shapeplaces the maximum area of thewire at the point of higheststress to handle valve trainstress more efficiently andallow better heat dissipationfor longerlife.
KitContains:
Beehive Springs#26918-16 SteelRetainers#774-16 7 SteelValve Locks#623-16 Valve Seals#511-16 Spring Seats#4705-16 Spring Specifications
SpringO.D: Top 1.075" / Bottom1.310" Spring I.D: Top.650" / Bottom.885" Seat Load: 125 @1.800" Open Load: 367@ 1.150" Coil Bind:1.100" Rate (LBS/In):372 lbs Max Lift:.625"
Item Specific Information
Brand
GTIN
036584225485
Manufacturer Part Number
26918CS-KIT
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Valve Spring Style
Beehive
Number of Springs Per Valve
Single
Maximum Valve Lift (in.)
0.625 in.
Retainers Included
Yes
Retainer Material
Steel
Outside Diameter of Outer Spring (in.)
1.075 in./1.310 in.
Coil Bind Height (in.)
1.140 in.
Damper Spring Included
No
Spring Rate (lbs/in.)
372 lbs./in.
Inside Diameter of Outer Spring (in.)
0.650 in./0.885 in.
Locks Included
Yes
Lock Material
Hardened steel
Lock Groove Quantity
1-groove
Lock Style
7 degree
Valve Stem Seals Included
Yes
Valve Springs Coated
No
Valve Stem Diameter (in.)
0.314 in.
Valve Stem Diameter (mm)
7.97mm
Remanufactured
No
Quantity
Sold as a kit.
