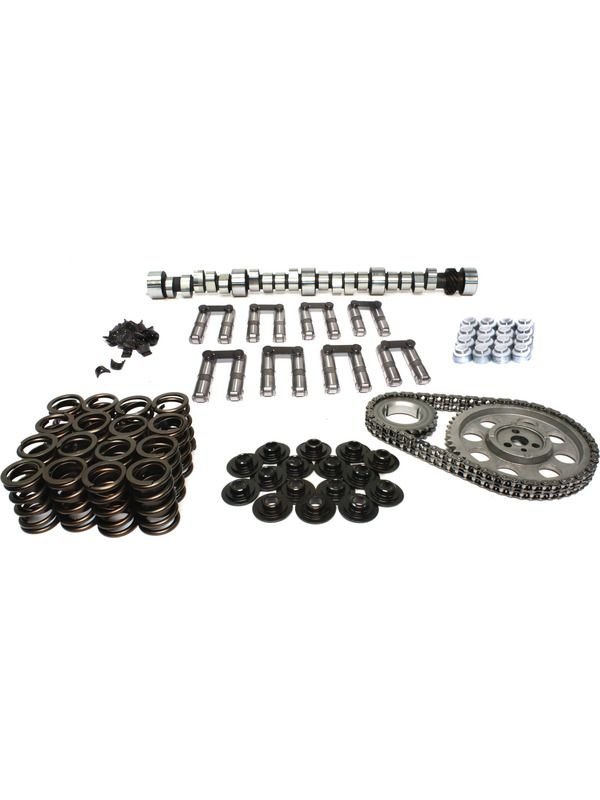

Comp Cams Lifters / Valvetrain Magnum Hydraulic Roller Adverti
Comp Cams Lifters / Valvetrain Xtreme Energy Hydraulic Roller
Comp Cams Lifters / Valvetrain Xtreme Energy Hydraulic Roller K12-422-8
MPN: K12-422-8
|
RPI: 2596181
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584034094
Manufacturer Part Number
K12-422-8
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Cam Style
Hydraulic roller, Retro-fit
Basic Operating RPM Range
1,600-5,400
Camshaft Use
Street/Strip
Intake Duration at 050 inch Lift
218
Exhaust Duration at 050 inch Lift
224
Duration at 050 inch Lift
218 int./224 exh.
Advertised Intake Duration
270
Advertised Exhaust Duration
276
Advertised Duration
270 int./276 exh.
Intake Valve Lift with Factory Rocker Arm Ratio
0.495 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio
0.502 in.
Valve Lift with Factory Rocker Arm Ratio
0.495 int./0.502 exh.
Lobe Separation (degrees)
110
Grind Number
CS XR270HR-10
Computer-Controlled Compatible
No
Lifters Included
Yes
Lifter Style
Hydraulic roller
Valve Springs Included
Yes
Outside Diameter of Outer Spring (in.)
1.430 in.
Retainers Included
Yes
Locks Included
Yes
Valve Stem Seals Included
Yes
Timing Chain and Gears Included
Yes
Timing Chain Style
Double roller
Assembly Lubricant Included
No
Pushrods Included
Yes
Rocker Arms Included
No
Gaskets Included
No
Valve Springs Required
No
Quantity
Sold as a kit.
Notes
Retro-fit
Comp Cams Lifters / Valvetrain Xtreme Energy Hydraulic Roller Notes: Cam / Lifters / Valvetrain Xtreme Energy Hydraulic Roller Advertised Duration 270 / 27
