Comp Cams Camshaft Nitrous HP Hydraulic Roller Lift 0.502 / 0.520 in
Comp Cams Camshaft Nitrous HP Hydraulic Roller Lift 0.520 / 0.540 in
Comp Cams Camshaft Xtreme Marine Hydraulic Roller Lift 0.495 / 0.503 12-417-8
MPN: 12-417-8
|
RPI: 2267724
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584038399 |
| Manufacturer Part Number |
12-417-8 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic roller, Retro-fit |
| Camshaft Use |
Marine |
| Basic Operating RPM Range |
1,500-5,500 |
| Intake Duration at 050 inch Lift |
218 |
| Exhaust Duration at 050 inch Lift |
224 |
| Duration at 050 inch Lift |
218 int./224 exh. |
| Advertised Intake Duration |
270 |
| Advertised Exhaust Duration |
276 |
| Advertised Duration |
270 int./276 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.495 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.503 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.495 int./0.503 exh. |
| Lobe Separation (degrees) |
112 |
| Remanufactured |
No |
| Computer-Controlled Compatible |
No |
| Grind Number |
CS XM 270HR-12 |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
| Notes |
Retro-fit |

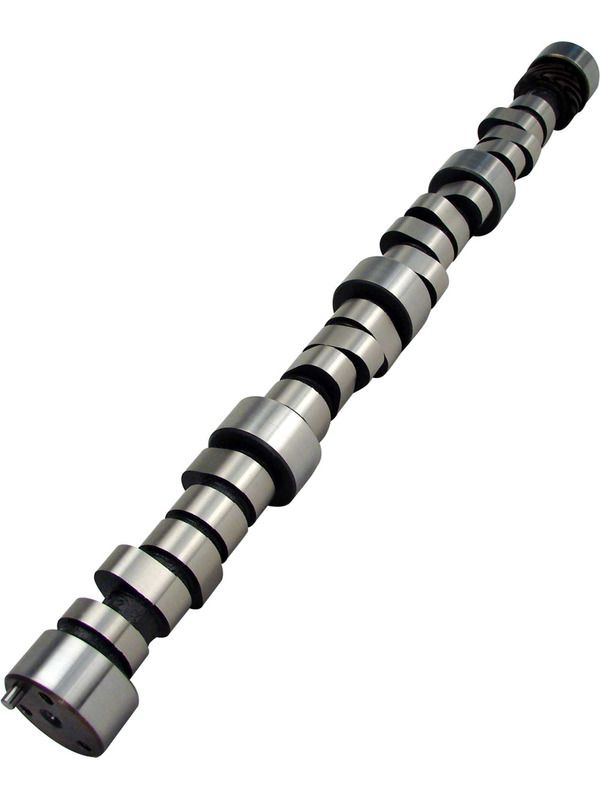

Comp Cams Camshaft Xtreme Marine Hydraulic Roller Lift 0.495 / 0.503
Camshaft - Xtreme Marine - Hydraulic Roller - Lift 0.495 / 0.503 in - Duration 270 / 276 - 112 LSA - 1500 / 5500 RPM - Small Block Chevy - Each
