Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 282
Comp Cams Camshaft High Energy Hydraulic Flat Advertised Duration 240

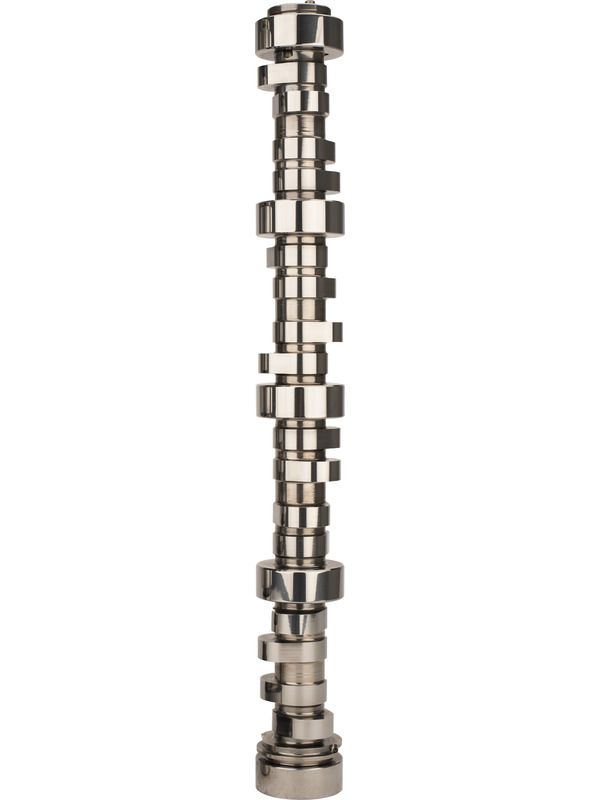

Comp Cams Camshaft XFI AFM Hydraulic Roller Advertised Duration 286 689-423-13
MPN: 689-423-13
|
RPI: 2594071
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584237945
Manufacturer Part Number
689-423-13
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Assembly Lubricant Included
No
Camshaft Gear Attachment
1-Bolt
Camshaft Material
Billet Steel
Camshaft Series
XFI AFM
Engine Family
GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
Grind Number
274PIIHR16
Lifters Included
No
Lobe Separation
116
Usage
Street/Performance
Valve Springs Required
Yes
Advertised Exhaust Duration Deactivation Cylinders
289
Advertised Exhaust Duration Non-Deactivation Cylinders
286
Advertised Intake Duration Deactivation Cylinders
286
Advertised Intake Duration Non-Deactivation Cylinders
274
Exhaust Duration at .050 inch Lift Deactivation Cylinders
236
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders
234
Exhaust Valve Lift Deactivation Cylinders
0.5 in
Exhaust Valve Lift Non-Deactivation Cylinders
0.5 in
Intake Duration at .050 Inch Lift Deactivation Cylinders
224
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders
222
Intake Valve Lift Deactivation Cylinders
0.5 in
Intake Valve Lift Non-Deactivation Cylinders
0.5 in
Notes: Camshaft XFI AFM Hydraulic Roller Advertised Duration 286/298 Lift .500/.500 GM LS GEN IV
