Street/Strip, needs 3.73+ gears, 2400+ stall. Intake, exhaust, computer and valve spring 26113 required. Rough idle.
Basic Operating RPM Range
2,200-6,200
Intake Duration at 050 inch Lift
242
Exhaust Duration at 050 inch Lift
246
Duration at 050 inch Lift
242 int./246 exh.
Advertised Intake Duration
278
Advertised Exhaust Duration
282
Advertised Duration
278 int./282 exh.
Intake Valve Lift with Factory Rocker Arm Ratio
0.550 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio
0.550 in.
Valve Lift with Factory Rocker Arm Ratio
0.550 int./0.550 exh.
Lobe Separation (degrees)
113
Remanufactured
No
Computer-Controlled Compatible
Yes
Grind Number
XE278AH
Valve Springs Required
Yes
Quantity
Sold as a pair.
Notes
Fits 2V SOHC engines only. For 1999 and later performance improvements heads. Can also be used in 1998 and earlier heads with retainer to guide clearance modifications and Comp Cams valve springs.

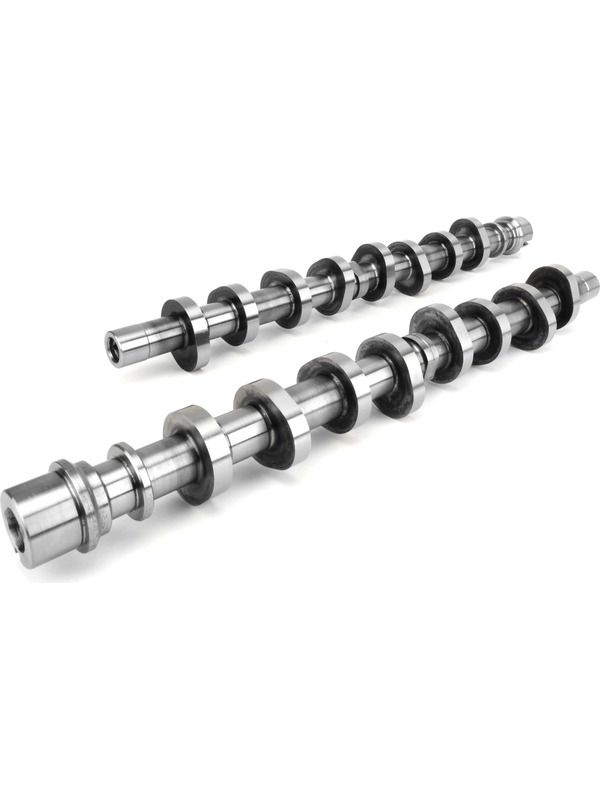

COMP Cams Xtreme Energy modular 2-valve camshafts are specifically created for high-demanding, overhead-camshaft engine configurations. From stock replacements to ultimate performance, there is an Xtreme Energy cam to meet your performance goals.
