COMP Cams 273-360 Hydraulic Cam Xe274H 230/236@50 .488/491" 110
COMP Cams 273-360 Hydraulic Cam Xe275Hl 231/237@50 .525/525" 110

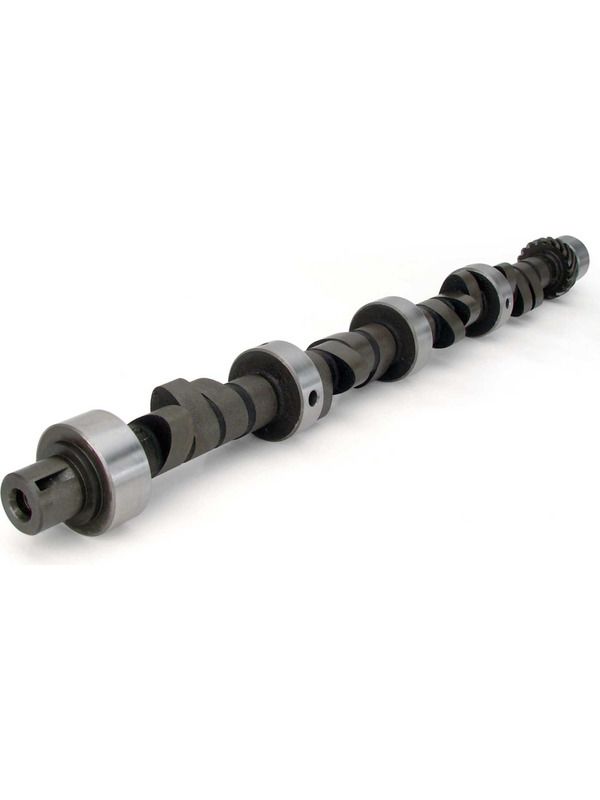

COMP Cams 273-360 Hydraulic Cam Xe284H 240/246@50 .507/510" 110 20-225-4
MPN: 20-225-4
|
RPI: 184553
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584047001 |
| Manufacturer Part Number |
20-225-4 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic flat tappet |
| Camshaft Use |
Street/Strip |
| Basic Operating RPM Range |
2,300-6,500 |
| Intake Duration at 050 inch Lift |
240 |
| Exhaust Duration at 050 inch Lift |
246 |
| Duration at 050 inch Lift |
240 int./246 exh. |
| Advertised Intake Duration |
284 |
| Advertised Exhaust Duration |
296 |
| Advertised Duration |
284 int./296 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.507 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.510 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.507 int./0.510 exh. |
| Lobe Separation (degrees) |
110 |
| Remanufactured |
No |
| Computer-Controlled Compatible |
No |
| Grind Number |
CRS XE284H-10 |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
COMP Cams 273-360 Hydraulic Cam Xe284H 240/246@50 .507/510" 110
- Rpm operating range2300 - 6500
- Durationadvertised Inlet 284,Exh 296
- Duration advertised @ .050"Inlet 240, Exh 246
- Valve lift with 1.5rocker Inlet .507", Exh 510"
- Lobe separationangle 110
