Air Flow Research Enforcer 200cc Cylinder Heads Angle Plug SBC 1016
MPN: 1016
|
RPI: 3289581
$1,648.72
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here

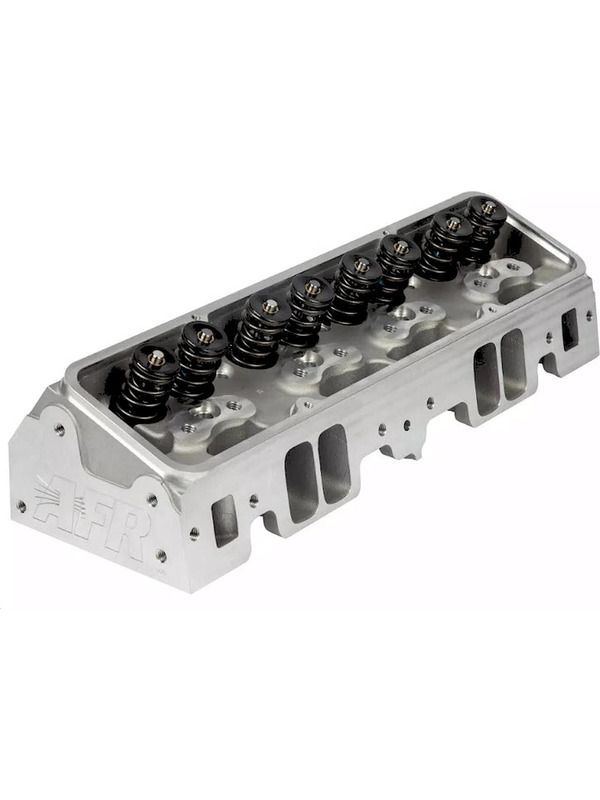

Air Flow Research Enforcer 200cc Cylinder Heads Angle Plug SBC
Specifications & Features:
- Material: A356 Aluminum or international equivalent
- Intake Port Volume: 198 - 200c
- Intake Port Dimension: 2.080" H x 1.270" x 5/16 Radius
- Intake Port Location: Stock
- Exhaust Port Volume: 74cc
- Exhaust Port Dimension: 1.450" H x 1.550" W
- Exhaust Port Location: Stock
- Combustion Chamber Size: 69cc
- Valve Cover Bolt Pattern: Perimeter Bolt
- Valve Angle: 23
- Valve Spring Pocket Diameter: 1.500" O.D
- Max Valve Spring Pocket Machining: 1.580" O.D - Warning: Do not machine spring pad any deeper.
- Deck Thickness: .470"
- Minimum Bore Diameter: 4.000"
- Minimum Head Gasket Bore: 4.100"
- Flat Mill: .006" per cc 56cc Maximum
- Spark Plug Dimensions: 14mm x .750" w/Gasket Seat
