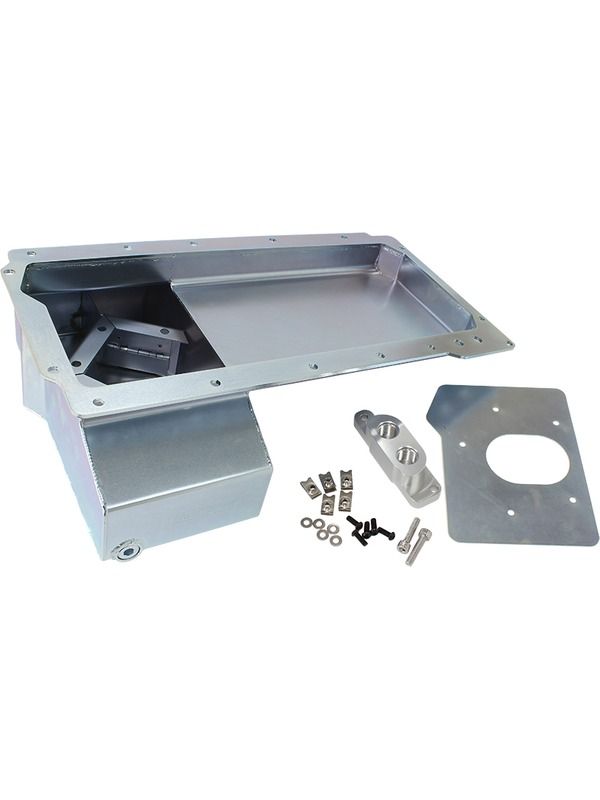

Aeroflow Ls Chev Fabricated Oil Pan Front Sump Pan Commodre Etc
Aeroflow's range of super oil pans available for most popular V8 engines are the perfect choice for street or track driven high-performance engines. This fabricated front sump oil pan designed to use in engine conversions. Which is specially designed with extra oil capacity wings, these wings allow extra oil capacity without affecting ground clearance which helps maintain more constant oil temperatures for reliability. These pans may also be fitted with a trap doors, windage trays and crank scrapers which keeps oil at the pickup during hard acceleration and braking.
The Aeroflow Performance fabricated front sump oil pan is designed to suit GM LS Chev engines, mainly used in engine conversions in a VB-VT Holden Commodore. This oil pan can also be used in additional applications. It holds 6.12 liters of engine oil with extra capacity wings built onto the sides of the oil pan. The race pan has a female 1/4" NPT welded into the pan for a dipstick provision and requires the use of an aftermarket dipstick (sold separately AF64-2123 or AF64-2123BLK).
This race oil pan will utilize a different oil filter setup from the factory OEM location. Due to certain engine conversions, there is limited space and hard to reach for the stock location oil filter. Included in the kit is an oil block adapter with two female -10 ORB to run an external oil filter and/or oil cooler such as AF64-4112, AF64-2075 or AF64-2061 for example. This will need to be adapted to suit your application.
Aeroflow Performance also have several other different options available for remote mounting the oil filter (sold separately). The oil filter adapter block AF82-2022 is similar to the one included in this kit instead of the oil filter hanging down vertically it mounts the oil filter horizontally or at a 90-degree angle. The oil block AF82-2013 has 2 x female -10 ORB fittings attached to the block. This will allow an external oil filter and/or oil cooler setup to be ran such asAF64-4112, AF64-2075 or AF64-2061. This will need to be adapted to suit your application. AF82-2009 GM LS 90-degree oil block adapter, this allows two female -10 ORB fittings placed 90-degree (Horizontal) position. AF82-2030 GM LS slimline oil block adapter is perfect for tight clearances with -10AN male fittings attached to a very slim plate.
This race oil pan features a trap door setup to keep oil within the oil pick up area under any condition. The OEM windage tray may be used with this pan or purchase separately the Aeroflow Performance windage tray AF82-2020 for improved oil control in any application.
Aeroflow Performance makes an oil pick up to suit this race pan. This is sold separately (AF82-2409). It will also accept the standard OEM oil pick up (GM12572654).
