Aeroflow Billet Low Profile Triple 40mm Fuel Pump Hanger Polished AF64-4056
(Prior to Dispatch)

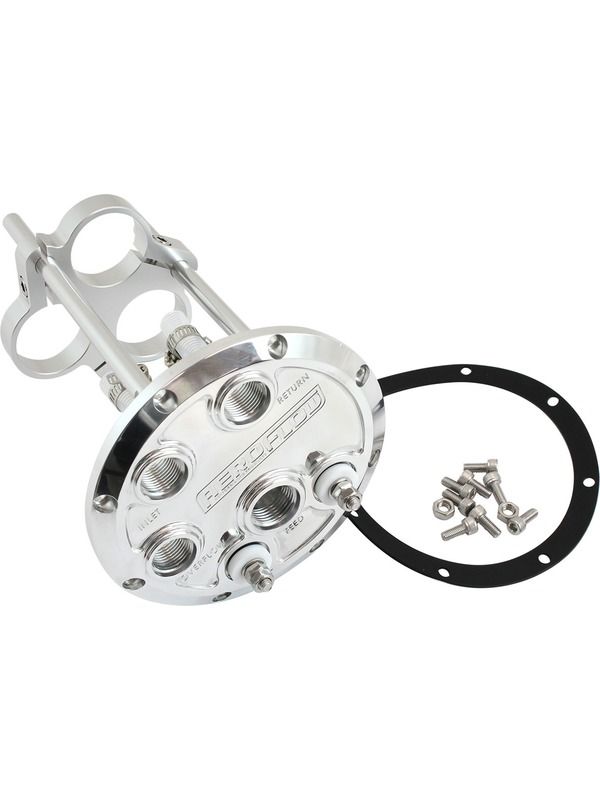

Aeroflow Billet Low Profile Triple 40mm Fuel Pump Hanger Polished
Deliver more fuel to your high-powered car with Aeroflow's low profile triple pump hanger kit! Our weld in low profile triple pump hanger is CNC machined from billet 6061-T6 aluminium with a black anodized option for maximum durability and corrosion protection against E85/Methanol. The 2-piece head incorporates a weld on ring for fabricating custom tanks. The Buna N O-rings provide a positive seal for the internal fuel log which has a -10ORB feed with a -8ORB return, overflow and inlet. Three -8ORB internal feeds with PTFE intake hose and clamps and single post electrical terminal bulkheads are provided. This billet hanger has the ability to mount one, two or three AF49-1242, AF49-1057 EFI fuel pumps or any 40mm diameter fuel pumps at one time. All 40mm fuel pumps used when staged must include a internal check valve to ensure fuel does not back feed into surge tank.
- Weld on rings are sold separately in either aluminium or stainless steel for those wanting to fabricate a fuel cell or surge tank specific to each applications.
- Suits a 139mm or 5.5" diameter cut-out.
- For Use with a minimum depth of 190mm or 7" deep tanks.
- Twin or triple E85 compatible Aeroflow pumps AF49-1242, AF49-1057.
- Block-Off plugs (AF813-08BLK) required if using less than 3 pumps (sold separately).
